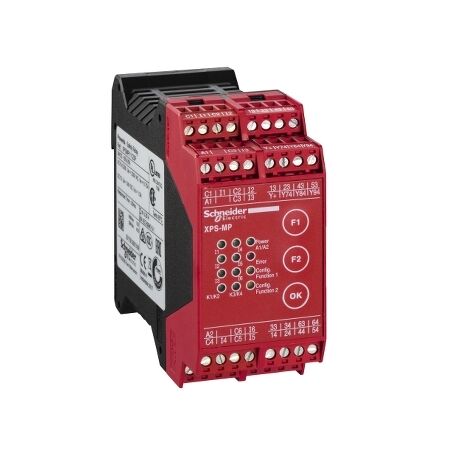

MULTIFUNC Safety Mod 24V | Emergency Stop & Safety Gate Monitoring | LED Status Indicators | @Pack of 1 | by Clipsal
The MULTIFUNC Safety Mod 24V is a multifunctional safety relay module designed for industrial automation safety circuits. With support for emergency stop and safety gate monitoring, it features LED indicators for status and diagnostics. Compact and DIN rail mountable, this relay ensures high reliability in safety systems, making it ideal for machine safety interlocking and control panel expansions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MULTIFUNC Safety Mod 24V | Emergency Stop & Safety Gate Monitoring | LED Status Indicators | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXPSMP11123P
Alternatively Known As: Clipsal Safety Relay, 24V Safety Module, SCHXPSMP11123P, Multifunctional Safety Relay, Clipsal Safety Interlock Module
Technical Specifications
- Supply Voltage: 24V DC
- Input Type: Safety-related inputs for emergency stop and safety gate
- Output Contacts: 3 NO (normally open) safety contacts, 1 NC (normally closed) auxiliary contact
- Mounting: DIN rail
- Operating Temperature: -25°C to +55°C
- LED status indicators for power and fault diagnostics
- Conforms to EN ISO 13849-1 and IEC/EN 62061 safety standards
- Dimensions (H x L x W): 99mm x 114.5mm x 22.5mm
- Weight: 0.25 kg
Key Features
- Multifunctional safety relay module for 24V applications
- Supports multiple safety functions including emergency stop and safety gate monitoring
- LED indicators for status and diagnostics
- Compact DIN rail mountable design
- High reliability for industrial safety systems
Professional Installation Requirements
- Installation must be performed by a qualified electrician or automation technician in accordance with local electrical safety regulations.
Applications
- Industrial automation safety circuits
- Machine safety interlocking
- Emergency stop circuits
- Safety relay expansion in control panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances workplace safety, reducing risk of accidents and environmental hazards
- Energy-efficient operation with low standby power consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MULTIFUNC Safety Module 24V SCHXPSMP11123P is available for immediate purchase. Ideal for industrial automation and safety control applications.
