Multifunction Electrical Tester | 2V to 600V Input Range | USB Data Logging & Colour LCD | by Eaton

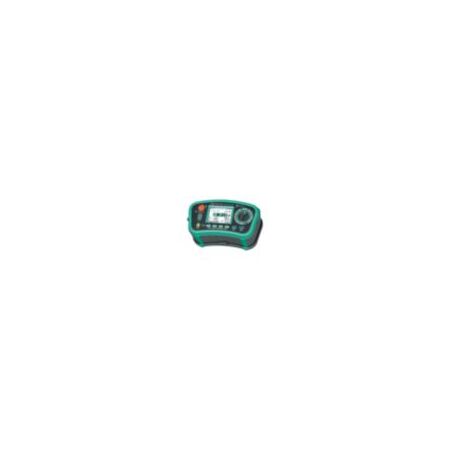

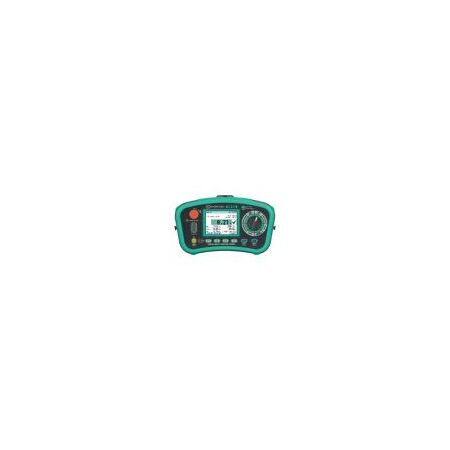

The Kyoritsu 6516 Multifunction Tester is designed for electrical testing with a 2V to 600V input range and USB data logging capabilities. Ideal for qualified electricians, it ensures safety compliance and efficient fault diagnosis in industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multifunction Electrical Tester | 2V to 600V Input Range | USB Data Logging & Colour LCD | by Eaton
Brand: Eaton
SKU: 065160029A
Alternatively Known As: Kyoritsu 6516 Electrical Tester, Multifunction Electrical Tester, Kyoritsu 6516 Earth Resistance Tester, Kyoritsu 6516 RCD Tester
Technical Specifications
- Input voltage range: 2 V to 600 V
- Input frequency range: 45 Hz to 65 Hz
- Insulation measurement range: 0 - 2000 MΩ
- Insulation measurement accuracy: ±2% to ±5%
- Voltage measurement resolution: 0.1 V
- Resistance measurement max: 2000 Ω
- Loop impedance ranges: 2/20/200/2000 Ω
- PSC and PFC range: 2000 A / 20,000 A
- Trip current test ranges: x1/2, x1, x5, Ramp
- Safety certifications: IEC 61557 series, IEC 60529, IEC 61010-1
- Display: Colour LCD with backlight
- Communication: USB
- Measurement logging supported
- Dimensions (H x L x W): 136mm x 235mm x 114mm
- Weight: 1.3 kg
Key Features
- Varistor testing capability
- Colour LCD display with backlight
- USB communication for data logging
- Supports 2 wire and 3 wire earth resistance testing
- Measurement capabilities include trip current, phase rotation, trip time, continuity buzzer, earth resistance, and frequency test
- Safety category rating CATIII 600V and CATIV 300V
- RCD test types: RAMP x1/2, AUTO x1, x5
Professional Installation Requirements
- Professional use recommended; testing should be performed by qualified electricians trained in electrical safety and testing procedures.
Applications
- Electrical testing and maintenance
- Industrial and commercial electrical installations
- Safety compliance verification
- Electrical fault diagnosis and troubleshooting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables accurate electrical testing to prevent electrical faults and hazards, promoting safety and reducing energy waste
- USB logging reduces paper usage by enabling digital record keeping
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's official warranty policy for details.
Available Now
The KYORITSU 6516 Multifunction Tester by Eaton is available now for immediate purchase. Ideal for electrical testing and safety compliance in industrial, commercial, and residential settings.
