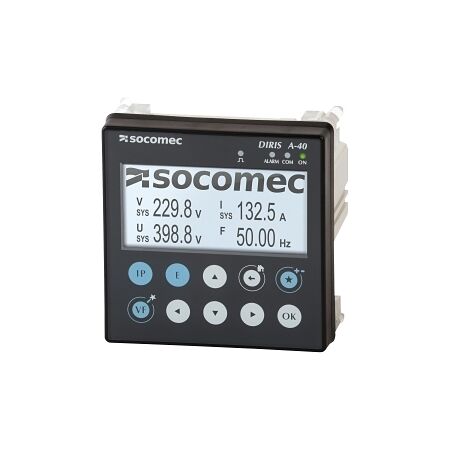

Socomec DIRIS A-40 Quick Connect Multifunction Meter Ethernet 3I 2O

Multifunction Energy Meter | Ethernet 3I 2O | LCD Display | Quick Connect by NHP

BRAND: NHP

SKU: 48250501

$3,350.70 List price: $4,449.30

+ −

30 Days Return Delivery Options

Multifunction energy meter with Ethernet 3I 2O and LCD display—ideal for industrial and commercial energy monitoring. Built for precise energy measurement, with Modbus protocol support for easy integration.

Description
Attachments

Product Name/Title: Socomec DIRIS A-40 Quick Connect Multifunction Meter Ethernet 3I 2O

Brand: NHP

SKU: 48250501

Alternatively Known As: DIRIS A-40 Energy Meter, Multifunction Energy Meter, Ethernet Energy Meter

Technical Specifications

Number of Digital Inputs: 3
Number of Digital Outputs: 0
Sampling Frequency: 10 Hz
Supply Voltage DC: 120-120 V
Power Consumption: 8 W
Pulse Counter: Yes
Self Powered: No
Pole Type: Three conductor/four conductor
Accuracy Class Active Energy according to IEC 62053-22: 0.2S
Measurement Parameters: kW, kWh, kVar, kVarh, Power Factor, Frequency, Voltage Line to Line, Voltage Line to Neutral
Supporting Protocol for Modbus: Yes
Display: LCD
Terminal Type: Removable terminal block
Mounting Method: To panel
Degree of Protection IP Front Side: IP52
Operating Temperature: -10-70 °C
Storage Temperature: -25-85 °C
Dimensions (H x L x W): 98mm x 85mm x 98mm
Weight: 1.5 kg

Key Features

Multifunction meter with 3 digital inputs and 0 digital outputs.
Supports Modbus protocol for easy integration.
LCD display for clear readings.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Energy monitoring and management
Commercial: Building energy efficiency
General: Any facility requiring precise energy measurement

Standards & Compliance

Complies with AS/NZS 60950 for safety and performance standards.

Environmental Benefits

Helps in reducing energy consumption and improving energy efficiency.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Socomec DIRIS A-40 Quick Connect Multifunction Meter Ethernet 3I 2O is available now for immediate purchase. Ideal for industrial and commercial energy monitoring.

48250501-AU-Multifunction-Meter-Datasheet.pdf (48250501-AU-Multifunction-Meter-Datasheet.pdf, 516 Kb) [Download]
