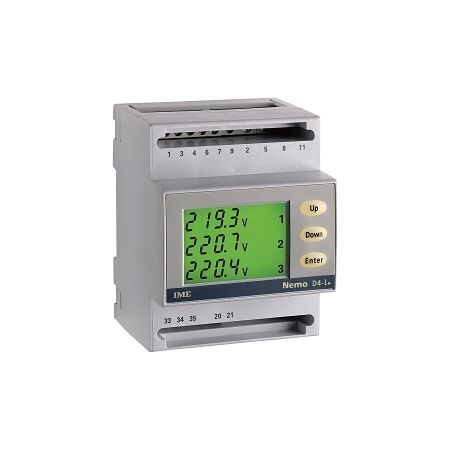

IME Nemo D4-L+ Multifunction Meter with Pulse and Modbus RS485 Auxiliary Supply 110V

Multifunction Energy Meter with Pulse & Modbus | 110V Auxiliary | DIN Rail by NHP

BRAND: NHP

SKU: MF6HT40003

$898.90 List price: $1,193.60

+ −

30 Days Return Delivery Options

Multifunction energy meter with pulse and Modbus RS485, featuring 110V auxiliary supply and DIN rail mounting—ideal for industrial and commercial energy monitoring. Built for precision, with an LCD display and easy installation.

Description
Attachments

Product Name/Title: IME Nemo D4-L+ Multifunction Meter with Pulse and Modbus RS485 Auxiliary Supply 110V

Brand: NHP

SKU: MF6HT40003

Alternatively Known As: Nemo D4-L Plus Energy Meter, Multifunction Energy Meter, Modbus Energy Meter

Technical Specifications

Frequency: 47-63 Hz
Supply Voltage AC (50 Hz): 97-126 V
Supply Voltage DC: 11-60 V
Rated Burden: 5 VA
Rated Insulation Voltage UI: 300 V
Refresh Time: 1.2 s
Accuracy Class Active Energy: Other
Accuracy Class Reactive Energy: Other
Measurement Parameters: kWh, kWh Demand, kVarh, VA, Var, Power Factor, Hz, Voltage, Current, etc.
Number of Pulse Outputs: 1
Terminal Type: Screw
Mounting Method: DIN rail
Material Housing: PPE-PS
Operating Temperature: -5 to 55 °C
Storage Temperature: -25 to 70 °C
Humidity Type: Short-term condensing
Pollution Degree: 2
Dimensions (H x L x W): 90mm x 65.6mm x 70mm
Weight: 0.3 kg

Key Features

Multifunction energy meter with LCD display.
Supports Modbus RS485 protocol.
DIN rail mounting for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Energy monitoring and management
Commercial: Power consumption analysis
General: Any application requiring multifunction energy metering

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Helps in optimizing energy usage, leading to reduced carbon footprint.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The IME Nemo D4-L+ Multifunction Meter is available now for immediate purchase. Ideal for industrial and commercial energy monitoring applications.

Non-Returnable & Non-Cancellable

MF6HT40003-AU-Multifunction-Energy-Meter-Datasheet.pdf (MF6HT40003-AU-Multifunction-Energy-Meter-Datasheet.pdf, 328 Kb) [Download]
