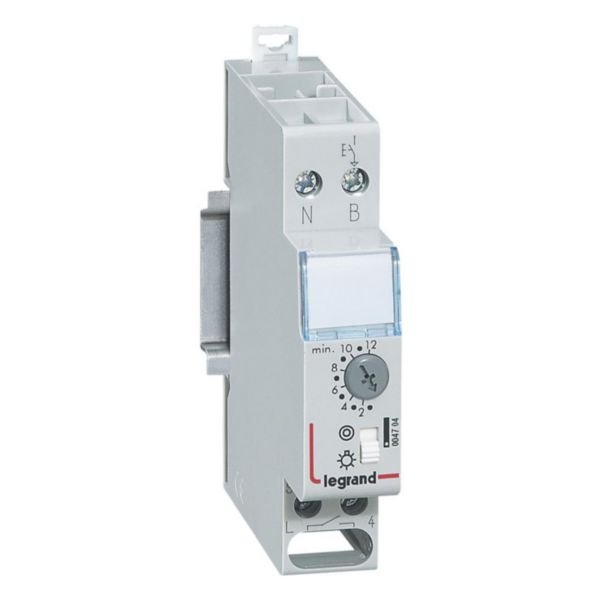

Multifunction Time-Lag Switch | 16 A Output | Adjustable Timing 0.5s to 12min | DIN Rail Mount | @EA of 1 | by Legrand
The multifunction time-lag switch is designed for efficient lighting control, featuring an adjustable timing range from 0.5 seconds to 12 minutes. With a robust 16 A output and compatibility with 3 or 4 wire configurations, it's perfect for residential and small commercial applications. This switch also includes a pre-warning flickering function and supports energy-saving lamps, making it an ideal choice for optimizing lighting usage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multifunction Time-Lag Switch | 16 A Output | Adjustable Timing 0.5s to 12min | DIN Rail Mount | @EA of 1 | by Legrand
Brand: Legrand
SKU: 004704
Alternatively Known As: Time delay switch, timer switch, multifunction timer relay, lighting timer switch, adjustable time-lag switch
Technical Specifications
- Power supply: 230 V~ 50/60 Hz
- Timing adjustable from 0.5 seconds to 12 minutes
- Output current: 16 A at 250 V~
- Max incandescent lamp load: 2000 W
- Max halogen lamp load: 2000 W
- Max fluorescent lamp load: 1000 VA
- Control voltage inputs: 8-230 V AC/DC
- Wiring system: 3 and 4 wire configuration
- Push button glow-lamp current: 50 mA
- Pre-warning of switching-off: flickering
- Mounting method: DIN rail
- Number of modules: 1
- Built-in depth: 70 mm
- Dimensions (H x L x W): 70mm x 70mm x 18mm
- Weight: 0.2 kg
Key Features
- Electronic multifunction time-lag switch with adjustable timing from 0.5 seconds to 12 minutes
- Compatible with 3 or 4 wire configurations, automatically recognized
- Inputs for separate control voltage 8-230 V AC/DC for presence detection or door entry lighting control
- Switch-off pre-warning function with flickering indication
- Long duration function (1 hour) and manual switch-off capability
- Output rated at 16 A, 250 V~ with various lamp load compatibility including incandescent, halogen, fluorescent, and energy-saving lamps
- Self-protection in case of blocked pushbutton
- DIN rail mounting with 1 modular width and 70 mm built-in depth
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into the electrical panel.
Applications
- Residential and small commercial electrical panels
- Lighting circuit control with adjustable timing
- Energy-saving lamp switching and lighting automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports energy-saving lamps reducing overall power consumption
- Helps optimize lighting usage with adjustable timing to reduce unnecessary energy use
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Lexic Multifunction Time-Lag Switch 16A 230V 50/60Hz is available for immediate purchase, ideal for residential and small commercial lighting control applications.
