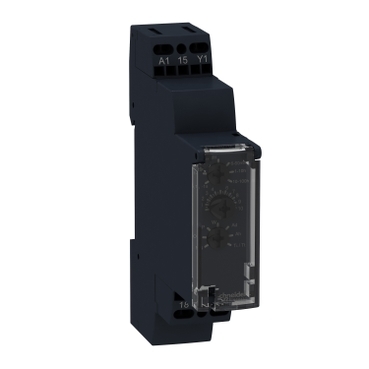

Multifunction Timer Relay 1C/O 24VAC/DC | DIN Rail Mountable | LED Status Indicator | @Pack of 1 | by Clipsal
The Multifunction Timer Relay 1C/O 24VAC/DC is designed for versatile control in industrial automation and HVAC systems. With multiple timing functions and a compact DIN rail mountable design, it offers a timing range from 0.1s to 100h, making it ideal for lighting control circuits and motor management. The LED status indicators ensure easy monitoring, enhancing operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multifunction Timer Relay 1C/O 24VAC/DC | DIN Rail Mountable | LED Status Indicator | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE17RMXMU
Alternatively Known As: Multifunction Timer Relay, Timer Relay 24VAC/DC, Clipsal Timer Relay, SCHRE17RMXMU Timer, DIN Rail Timer Relay
Technical Specifications
- Supply Voltage: 24VAC/DC
- Contact Configuration: 1 changeover (1C/O)
- Mounting: DIN rail
- Timing Functions: Multifunction (including delay on, interval, cyclic, etc.)
- Timing Range: 0.1s to 100h (selectable)
- Contact Rating: 8A at 250VAC
- Status Indication: LED
- Operating Temperature: -20°C to +50°C
- Dimensions (H x L x W): 90mm x 70mm x 17.5mm
- Weight: 0.1 kg
Key Features
- Multifunction timer relay with 1 changeover contact (1C/O)
- Operates on 24VAC/DC supply voltage
- Multiple timing functions for versatile control
- Compact DIN rail mountable design
- LED status indicators for easy monitoring
- Wide timing range for flexible applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial automation panels
- Building management systems
- Lighting control circuits
- HVAC systems
- Pumping and motor control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy-efficient automation by optimizing equipment run times
- Reduces unnecessary power consumption in control systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MULTIFUNC Timer 1C/O 24VAC/DC SCHRE17RMXMU is available for immediate purchase. Ideal for industrial automation, lighting, and HVAC control applications.
