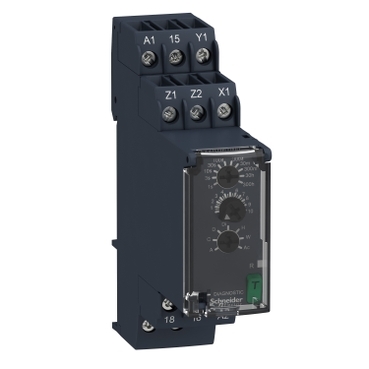

Multifunction Timer Relay | 24-240V AC/DC | SPDT Output | DIN Rail Mountable | @Pack of 1 | by Clipsal
The Multifunction Timer Relay is designed for versatile applications, operating within a supply voltage of 24-240V AC/DC and featuring a single changeover relay (SPDT) output. Ideal for industrial automation, lighting control, and HVAC systems, this compact DIN rail mountable device offers a wide timing range from 0.1s to 100h, ensuring high accuracy and reliability for your automation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multifunction Timer Relay | 24-240V AC/DC | SPDT Output | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE22R1MYMR
Alternatively Known As: Timer Relay, Multifunction Timer, DIN Rail Timer Relay, Schneider RE22R1MYMR, Automation Timer Relay
Technical Specifications
- Supply Voltage: 24-240V AC/DC
- Output: 1 changeover relay (SPDT)
- Contact Rating: 8A at 250V AC
- Timing Range: 0.1s to 100h (selectable)
- Mounting: DIN rail
- Status Indication: LED
- Operating Temperature: -20°C to +50°C
- IP Rating: IP20
- Dimensions (H x L x W): 90mm x 70mm x 17.5mm
- Weight: 0.1 kg
Key Features
- Multifunction timer relay with multiple timing functions
- Wide timing range for flexible applications
- Compact DIN rail mountable design
- LED status indicators for easy monitoring
- High accuracy and reliability
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial automation panels
- Building management systems
- Lighting control
- HVAC systems
- Pumping and motor control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy-efficient automation by optimizing equipment run times
- Reduces unnecessary power consumption in automated systems
Warranty Information
12 months manufacturer's warranty.
Available Now
The Clipsal Multifunction Timer Relay SCHRE22R1MYMR is available for immediate purchase. Ideal for industrial automation, lighting control, and building management systems.
