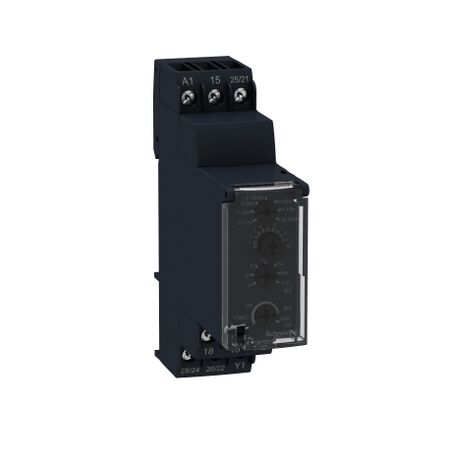

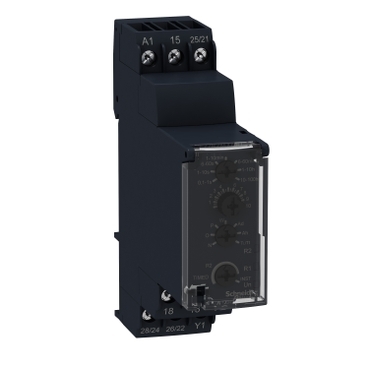

Multifunction Timer Relay | 8 Timing Functions | 12–240V AC/DC | DIN Rail Mount | @Pack of 1 | by Clipsal
The Multifunction Timer Relay is designed for versatile applications, featuring 8 timing functions and a wide supply voltage range of 12–240V AC/DC. Ideal for industrial automation and building management systems, this relay ensures high accuracy and repeatability, making it perfect for lighting control and HVAC systems. With LED status indicators and compact DIN rail mounting, it simplifies installation and operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multifunction Timer Relay | 8 Timing Functions | 12–240V AC/DC | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE22R2MMW
Alternatively Known As: Multifunction Timer Relay, Harmony Timer Relay, Industrial Timer Relay, Clipsal Timer Relay, SCHRE22R2MMW Timer, Universal Timer Relay
Technical Specifications
- Supply voltage: 12–240V AC/DC
- Contact configuration: 2CO (double pole changeover)
- Contact rating: 8A at 250V AC
- Timing range: 0.1 seconds to 100 hours
- Number of functions: 8 (including symmetrical flashing, delay on, interval, etc.)
- Mounting: DIN rail
- Status indication: LED for relay and timing
- Operating temperature: -20°C to +50°C
- Electrical life: 100,000 cycles at full load
- Mechanical life: 10,000,000 cycles
- Dimensions (H x L x W): 90mm x 70mm x 17.5mm
- Weight: 0.12 kg
Key Features
- Multifunction timer relay with 8 timing functions
- Wide supply voltage range: 12–240V AC/DC
- 2 changeover (2CO) contacts rated at 8A
- Time setting range from 0.1 seconds to 100 hours
- Symmetrical flashing function
- Compact DIN rail mounting
- LED status indicators for relay and timing
- High accuracy and repeatability
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial automation panels
- Building management systems
- Lighting control
- HVAC systems
- Pumping and motor control
- General electrical control circuits
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy-efficient automation by optimizing equipment run times
- Reduces unnecessary power consumption in control systems
- Supports sustainable building management through precise timing
Warranty Information
18 months warranty from date of purchase against manufacturing defects.
Available Now
The Clipsal SCHRE22R2MMW Multifunction Timer Relay is available for immediate purchase. Ideal for industrial automation, building management, and electrical control applications.
