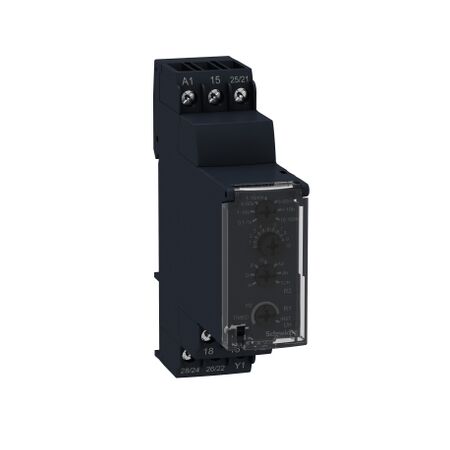

Multifunction Timer Relay | 8 Timing Functions | 24V DC & 24–240V AC/DC | Compact DIN Rail Mount | @Pack of 1 | by Clipsal
The Multifunction Timer Relay is designed for versatile applications in industrial automation and building management systems. With 8 timing functions and a wide timing range from 0.1 seconds to 100 hours, it supports dual supply voltage options of 24V DC or 24–240V AC/DC. Ideal for lighting control, HVAC systems, and motor control, this relay features LED status indicators for easy monitoring and is compact for DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multifunction Timer Relay | 8 Timing Functions | 24V DC & 24–240V AC/DC | Compact DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRE22R2MMU
Alternatively Known As: Harmony Timer Relay, Multifunction Timer, Industrial Timer Relay, Schneider Electric Timer Relay, RE22R2MMU
Technical Specifications
- Supply Voltage: 24V DC or 24–240V AC/DC
- Contact Configuration: 2CO (2 changeover contacts)
- Contact Rating: 8A at 250V AC
- Timing Functions: 8 (including delay on, interval, cyclic, etc.)
- Timing Range: 0.1 seconds to 100 hours
- Mounting: DIN rail
- Status Indication: LED for relay and timing
- Operating Temperature: -20°C to +50°C
- IP Rating: IP20 (housing), IP40 (front panel)
- Dimensions (H x L x W): 90mm x 70mm x 17.5mm
- Weight: 0.12 kg
Key Features
- Multifunction timer relay with 8 timing functions
- Wide timing range: 0.1 seconds to 100 hours
- Dual supply voltage: 24V DC or 24–240V AC/DC
- 2 changeover (2CO) contacts rated at 8A
- Compact DIN rail mounting
- LED status indicators for relay and timing
- High accuracy and repeatability
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation panels
- Building management systems
- Lighting control
- HVAC systems
- Pumping and motor control
- General electrical control circuits
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy-efficient automation by optimizing equipment run times
- Reduces unnecessary power consumption in control systems
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHRE22R2MMU Multifunction Timer Relay is available for immediate purchase. Ideal for industrial automation, building management, and electrical control applications.
