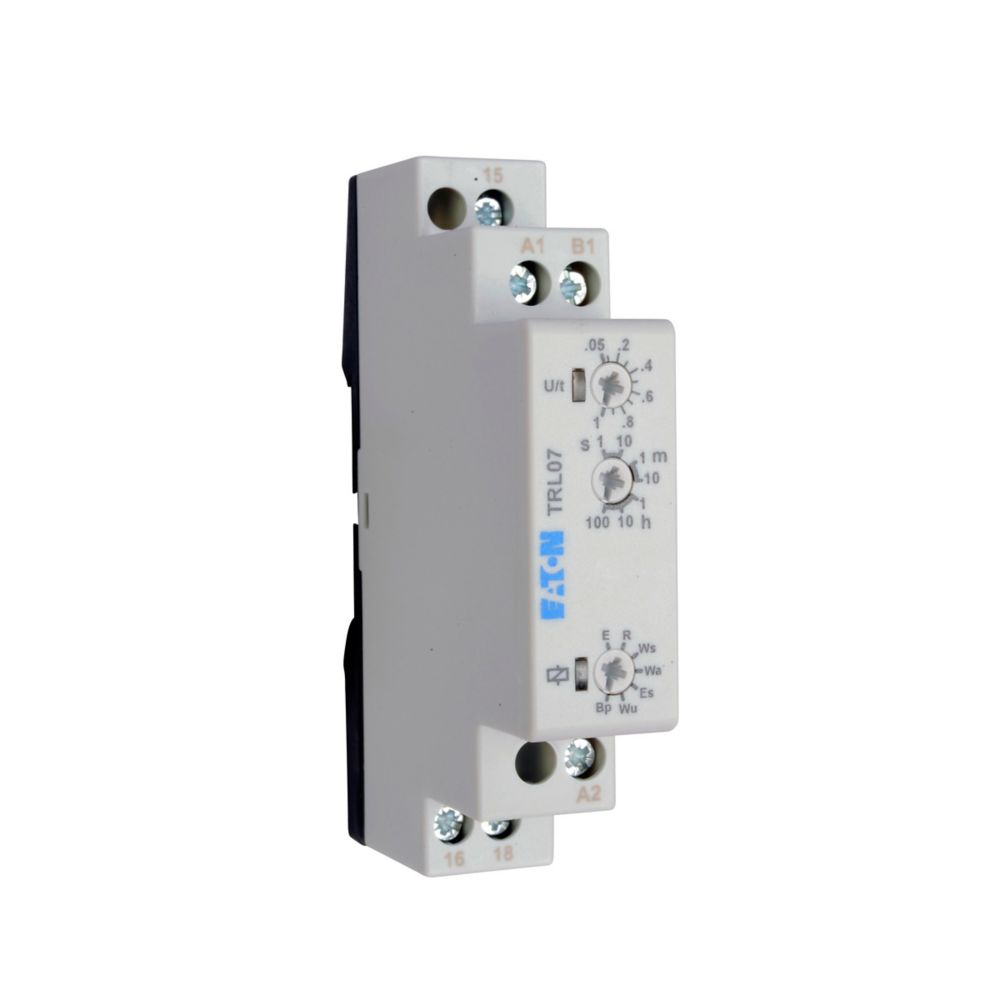

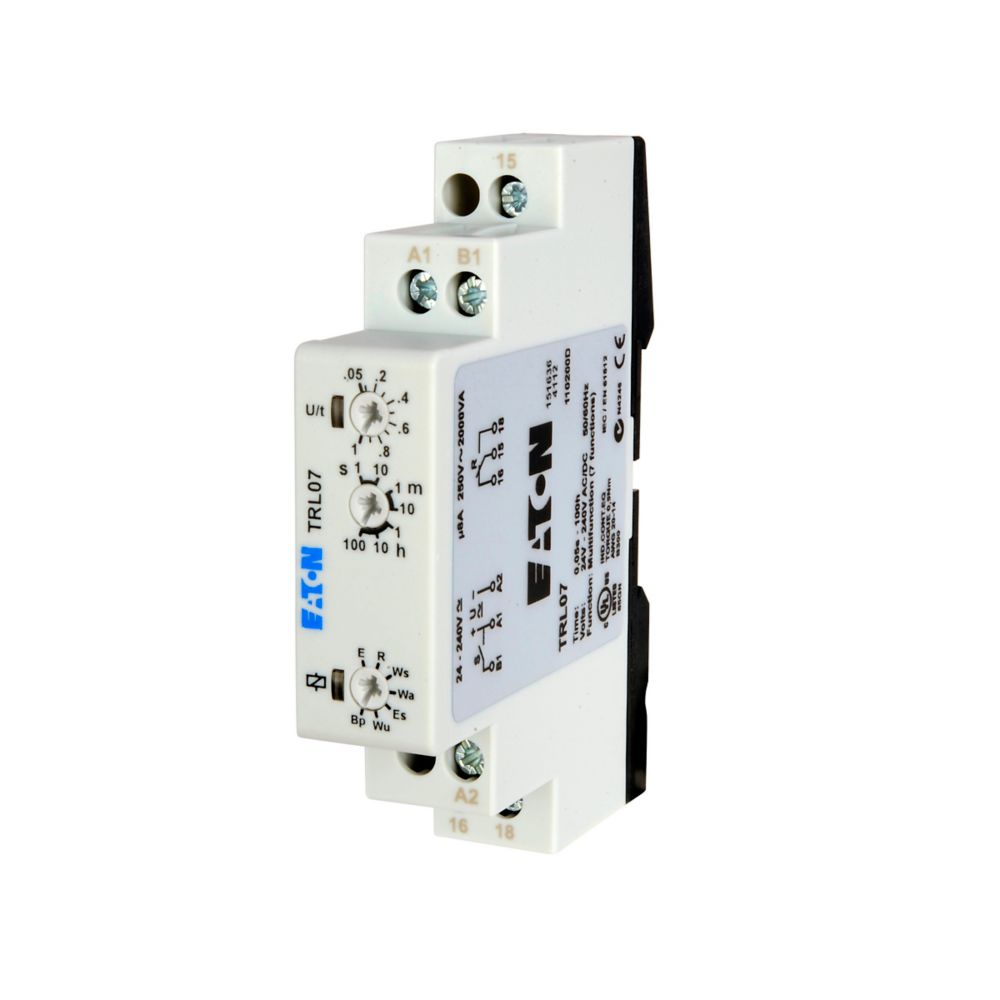

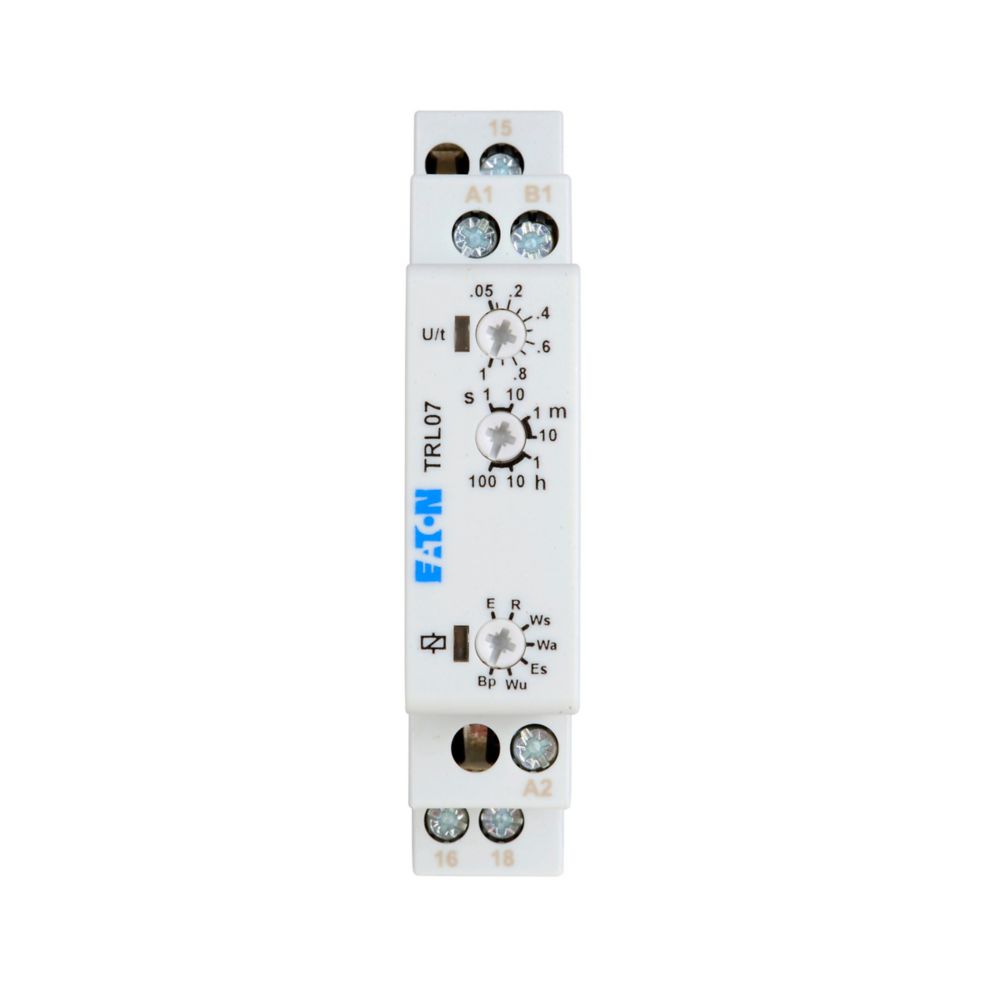

Multifunction Timing Relay | 7 Functions | 0.05s to 100h Delay | SPDT Contact | @Each by Eaton
The Multifunction Timing Relay is designed for precise timing control in industrial automation systems, featuring 7 versatile functions including ON delay and flasher modes. With a time delay range from 0.05 seconds to 100 hours and an input voltage of 24-240 Vac/dc, this relay is perfect for machinery and equipment requiring reliable timing solutions. Its compact DIN rail mount design and IP40 rated enclosure ensure durability and ease of installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multifunction Timing Relay | 7 Functions | 0.05s to 100h Delay | SPDT Contact | @Each by Eaton
Brand: Eaton
SKU: TRL07
Alternatively Known As: Multifunction Timing Relay, Universal Timing Relay, TRL07 Timer Relay, Eaton TR Timing Relay
Technical Specifications
- Time Delay: 0.05 seconds to 100 hours
- Input Voltage: 24-240 Vac/dc
- Contact Configuration: SPDT
- Frequency Rating: 50-60 Hz
- Enclosure Rating: IP40
- Mounting Method: Compact DIN rail
- Enclosure Material: Self-extinguishing plastic
- Functions: Single shot leading or trailing edge, voltage controlled and control input, ON delay control signal start, ON/OFF delay, trailing edge OFF, power triggered, flasher-pause first
- Dimensions (H x L x W): 87mm x 65mm x 18mm
- Weight: 0.1 kg
Key Features
- 7 multifunction timing relay with single shot, ON delay, ON/OFF delay, flasher and other timing functions
- Time delay range from 0.05 seconds to 100 hours
- Input voltage range 24-240 Vac/dc
- SPDT contact configuration
- Compact DIN rail mount design
- IP40 rated enclosure for protection
- Self-extinguishing plastic enclosure material
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe operation.
Applications
- Industrial automation control systems
- Timing control in electrical circuits
- Machinery and equipment requiring precise time delay functions
- Building automation and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Compact design reduces material usage and waste
- Energy efficient operation minimizes power consumption during timing cycles
Warranty Information
One (1) year from the date of installation or eighteen (18) months from the date of shipment, whichever occurs first, as per Eaton Selling Policy 25-000.
Available Now
The Eaton TRL07 Multifunction Timing Relay is available for immediate purchase, ideal for industrial and automation control applications.
