Multifunctional Pressure Switch PBST | Touchscreen & IP68 Rated | 0 to 250 Bar Range | by SICK

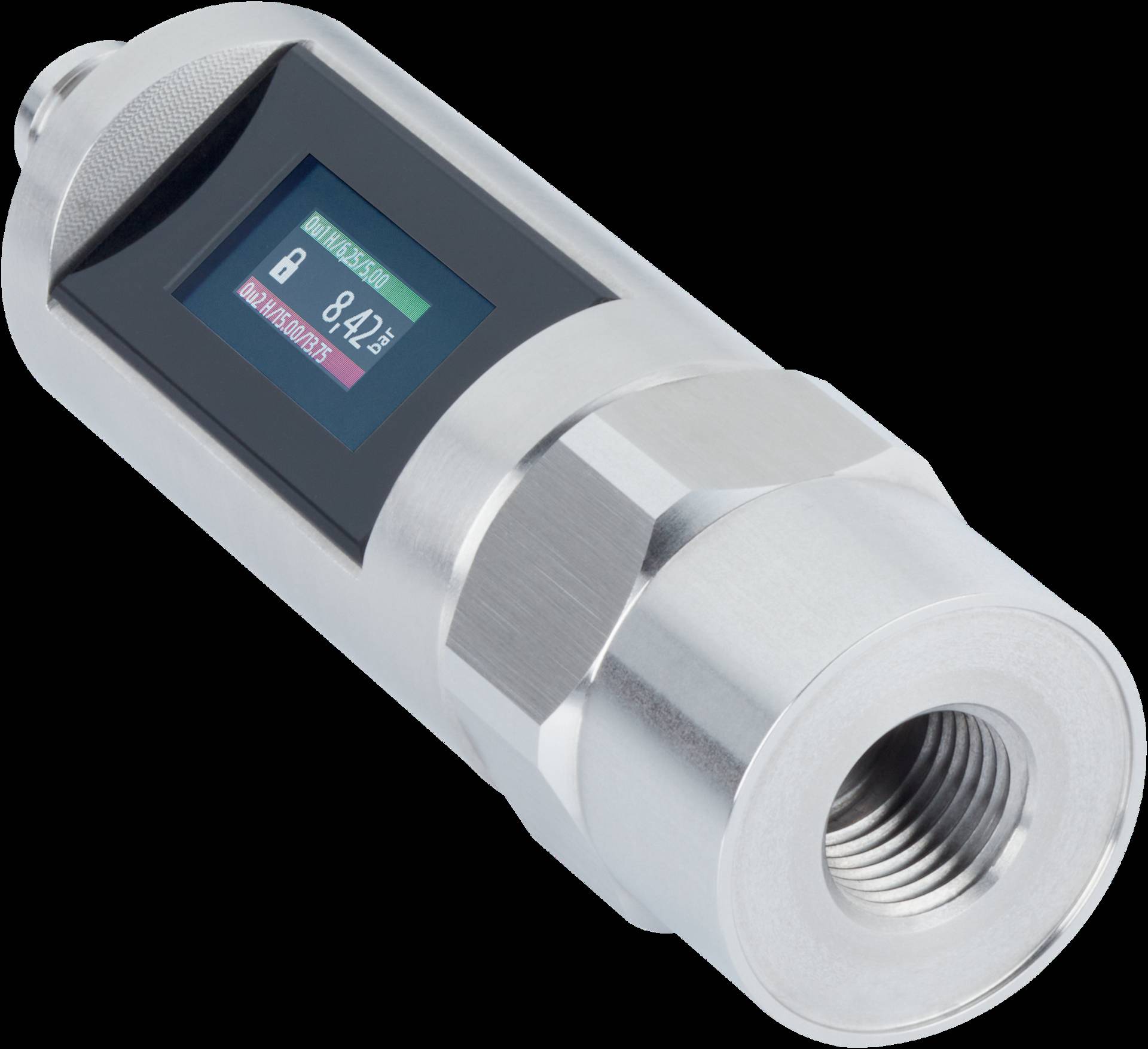

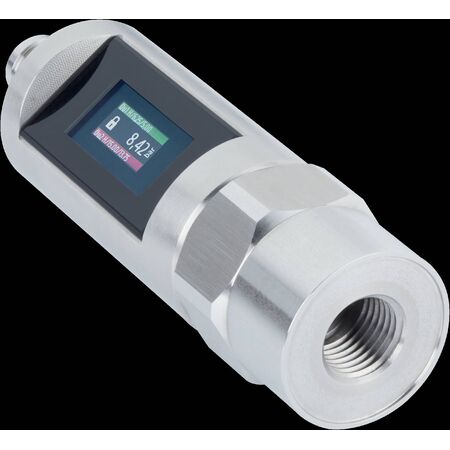

The PBST multifunctional pressure switch features a user-friendly multi-color touchscreen and an IP68-rated stainless steel housing, making it perfect for precise pressure measurement in industrial applications. With a measuring range of 0 to 250 bar and two configurable signal outputs, it’s ideal for monitoring liquids and gases in machine circuits and process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Pressure type: Gauge pressure
- Measuring range: 0 bar to 250 bar
- Switching output: 4 mA to 20 mA, 0 V to 10 V
- Process connection: G ¼ female (EN 837)
- Seal material: EPDM
- Enclosure rating: IP65, IP67, IP68
- Dimensions (H x L x W): 100mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Multi-color touchscreen for quick and easy configuration
- Compact stainless steel housing with IP68 enclosure rating
- Two flexibly configurable signal outputs (switching output, IO-Link, analog output)
- Measures relative pressure of liquids and gases from –1 to 600 bar
- Diagnostic options available via IO-Link
- M12 male connector for voltage supply
- Standard process connections: male thread G ¼", female thread G ¼", NPT male thread ¼"
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper configuration and safety compliance.
Applications
- Machine circuits pressure measurement and control
- Monitoring liquids and gases pressure
- Switching operations and system control in industrial automation
- Process control requiring precise pressure data
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste and extends product life
- Energy-efficient sensor technology minimizes power consumption
- Reliable measurement reduces process errors and material waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK PBST multifunctional pressure switch is available for immediate purchase, ideal for industrial process control and machine circuit applications.
