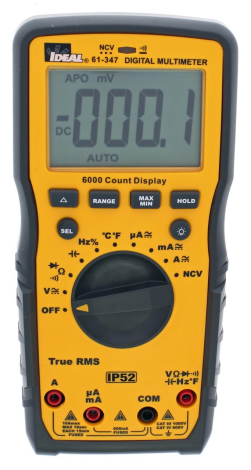

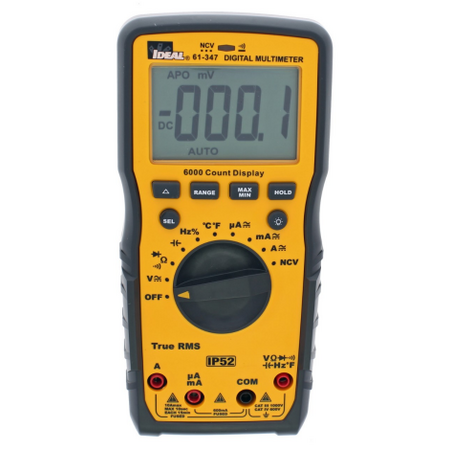

Multimeter 1000V Auto Range | True RMS Measurement | Non-Contact Voltage Detection | IP52 Rated by Ideal Electrical
This multimeter offers true RMS measurements and auto-ranging capabilities, making it ideal for electrical testing and troubleshooting. With a CAT IV 600V / CAT III 1000V safety rating and IP52 dust and water resistance, it's built for professional electricians and technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multimeter 1000V Auto Range
Brand: Ideal Electrical
SKU: IDL61-347
Alternatively Known As: Digital Multimeter 1000V, Auto Ranging Multimeter, TRMS Multimeter, Electrical Tester, Voltage Meter
Technical Specifications
- CAT IV 600V / CAT III 1000V safety rating
- True RMS AC voltage and current measurement
- AC/DC current measurement up to 10 Amps
- Voltage measurement up to 1000V AC/DC
- Resistance measurement up to 60MΩ
- Frequency, continuity, capacitance, diode testing
- K-Type thermocouple for temperature measurement
- Non-contact voltage detection from 40V to 600V
- Backlit LCD display
- IP52 rated for dust and water resistance
- Drop protection up to 2 meters

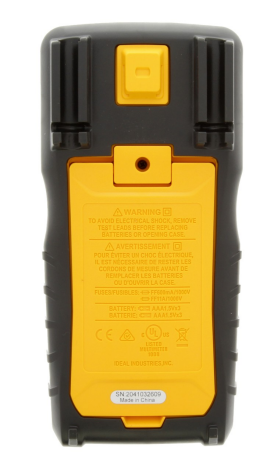

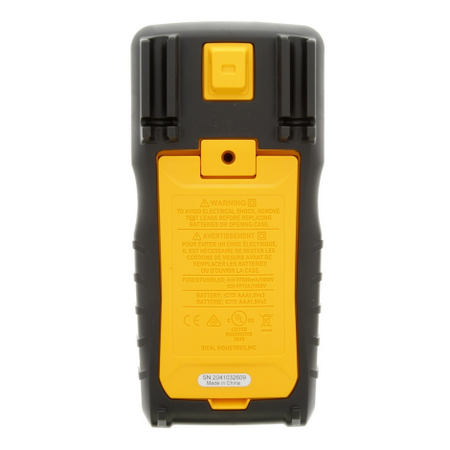

- Battery type: 3 x 1.5V AAA
- Dimensions (H x L x W): 180mm x 40mm x 80mm
- Weight: 0.3 kg
Key Features
- True RMS AC voltage and current measurements for accuracy on non-linear signals
- Auto-ranging capability for ease of use
- Measures AC/DC current up to 10 Amps
- Measures AC/DC voltage up to 1000V
- Frequency, resistance up to 60MΩ, continuity, capacitance, diode testing
- K-Type thermocouple included for temperature readings in Fahrenheit and Celsius
- Non-contact voltage sensor detects voltage between 40V and 600V
- Backlit display for visibility in low light
- Audible tones and illuminated LED alerts for voltage above 30V, continuity, and NCV detection
- Industrial-grade over-molded rubber boot for enhanced grip and 2 m drop protection
- Built-in probe holders and hanging strap mount for convenience
- Functions include HOLD, MIN/MAX, Relative, Range, and Auto Power Off
Professional Installation Requirements
- Professional use recommended; installation and testing should be performed by qualified electricians or technicians trained in electrical safety standards.
Applications
- Electrical testing and troubleshooting
- Industrial and commercial electrical maintenance
- HVAC system diagnostics
- Automotive electrical system testing
- General purpose electrical measurements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Auto power off feature conserves battery life reducing waste
- Durable design reduces need for frequent replacements
Warranty Information
Limited 2 Year warranty.
Available Now
The Ideal Electrical Multimeter 1000V Auto Range is available for immediate purchase, ideal for professional electricians, technicians, and industrial maintenance applications.
