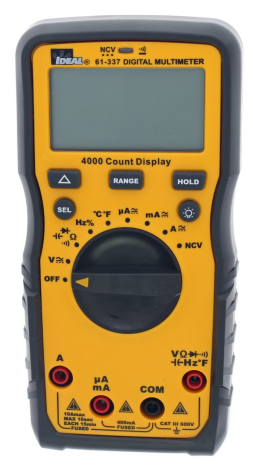

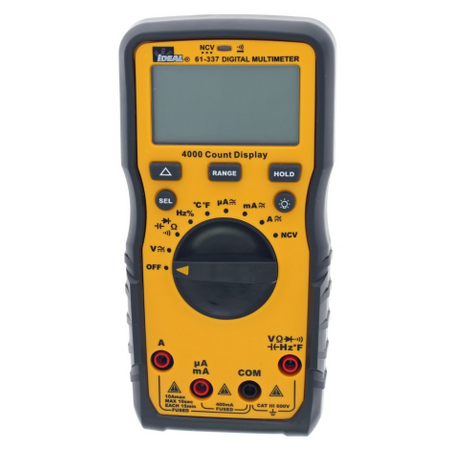

Multimeter 600V Auto Range | CAT III Safety Rating | TRMS & Backlit Display by Ideal Electrical
This 600V auto-ranging multimeter is designed for accurate electrical testing, measuring up to 10A current and featuring a backlit display for visibility in low light. Ideal for professionals in electrical maintenance, HVAC diagnostics, and automotive testing, it includes a K-Type thermocouple for temperature readings and non-contact voltage detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multimeter 600V Auto Range
Brand: Ideal Electrical
SKU: IDL61-337
Alternatively Known As: Digital Multimeter 600V Auto Range, TRMS Multimeter, Electrical Tester, Voltage Meter, Current Meter
Technical Specifications
- Voltage Measurement: Up to 600V AC/DC
- Current Measurement: Up to 10A AC/DC
- Resistance Range: Up to 40MΩ
- Frequency Measurement: Yes
- Capacitance Measurement: Yes
- Continuity and Diode Testing: Yes
- Temperature Measurement: K-Type thermocouple included (°F/°C)
- Non-contact Voltage Detection: 40V to 600V
- Display: Backlit LCD
- Battery: 3 x 1.5V AAA
- Drop Protection: 1 meter
- Fuse Notification: Yes
- Auto Power Off: Yes
- Data Hold: Yes
- Audible Continuity: Yes
- Dimensions (H x L x W): 160mm x 40mm x 75mm
- Weight: 0.3 kg
Key Features
- CAT III 600V safety rating
- Auto-ranging TRMS multimeter
- Measures up to 10 Amps AC/DC current
- Measures AC/DC voltage, frequency, resistance, continuity, capacitance, diodes
- Includes K-Type thermocouple for temperature readings in °F/°C
- Non-contact voltage sensor detects 40V to 600V
- Backlit display for visibility in low light
- Audible tones and illuminated LED alerts for voltage above 30V, continuity, and NCV detection
- Rubber boot with probe storage and built-in probe tip holders
- Industrial-grade over-molding with 1 m drop protection
- Hanging strap mount compatible with Universal Magnetic Hanging Strap (sold separately)
- Functions include HOLD, Relative, Range, and Auto Power Off
Professional Installation Requirements
- Professional installation is recommended for complex electrical systems to ensure safety and compliance with local regulations.
Applications
- Electrical testing and troubleshooting
- Industrial and residential electrical maintenance
- HVAC system diagnostics
- Automotive electrical system testing
- General purpose electrical measurements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Auto power off feature conserves battery life and reduces waste
- Durable design reduces need for frequent replacements
Warranty Information
Limited 2 Year warranty.
Available Now
The Ideal Electrical Multimeter 600V Auto Range is available for immediate purchase, ideal for electrical professionals and technicians requiring accurate and safe measurement tools.
