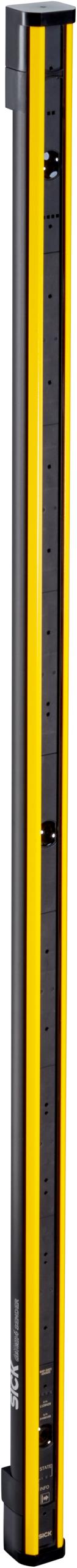

Multiple Beam Safety Sensor | Type 4 with SIL 3 & PL e | 90m Scanning Range | 3 Beams | by SICK
The Multiple Beam Safety Sensor is designed for industrial safety applications, featuring a Type 4 safety rating with SIL 3 and PL e integrity levels. With a scanning range of 90 meters and three beams spaced 400 mm apart, it ensures reliable detection and protection in various environments. Built for durability, it operates in temperatures from -30 °C to +55 °C and is ideal for machine safeguarding and perimeter protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: SICK deTem4 Multiple Beam Safety Sensor, Industrial Safety Light Beam Sender, SICK M4P Safety Light Curtain Sender
Technical Specifications
- Product version: deTem4
- Functional principle: Sender/receiver
- System part: Sender
- Scanning range: 90 m
- Number of beams: 3
- Beam separation: 400 mm
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496)
- Safety integrity level: SIL 3 (IEC 61508, IEC 62061)
- Category: Category 4 (ISO 13849)
- Performance level: PL e (ISO 13849)
- PFHD: 6.6 × 10^-9
- Mission time: 20 years (ISO 13849)
- Safe state on fault: At least one OSSD OFF
- System connection: M12 male connector, 5-pin or 8-pin
- Configuration: DIP switch or PC software via DMM4
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Residual ripple: ≤ 10%
- Housing cross-section: 30.7 mm x 34 mm
- Housing material: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Wavelength: 850 nm
- Dimensions (H x L x W): 34mm x 150mm x 31mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light beam sensor with SIL 3 and PL e safety integrity levels
- Three beams with 400 mm beam separation and 90 m scanning range
- Optical synchronization for reliable operation
- Multiple function packages including protective operation, muting, and diagnostic outputs
- Status LEDs for easy operational monitoring
- Robust aluminum extruded housing with polycarbonate scratch-resistant front screen
- Wide ambient operating temperature range from -30 °C to +55 °C
- High protection rating IP65 and IP67 for harsh environments
- Near-infrared invisible light at 850 nm wavelength
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light beam systems and compliant with relevant safety standards.
Applications
- Industrial safety light beam detection in normal industrial environments
- Machine safeguarding and perimeter protection
- Automation and process control requiring high safety integrity
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient 24 V DC operation minimizes power consumption
- High reliability reduces downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now

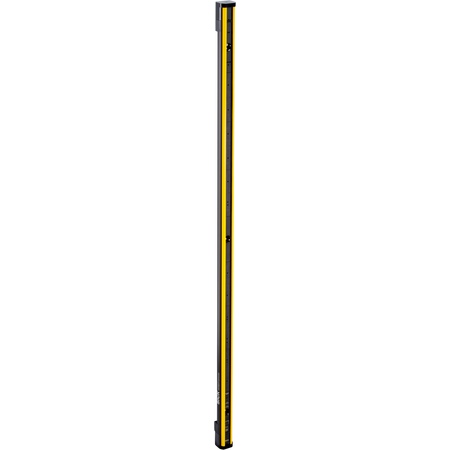

The SICK M4P-SA03400A00 Multiple Beam System is available for immediate purchase, ideal for industrial safety and automation applications.
