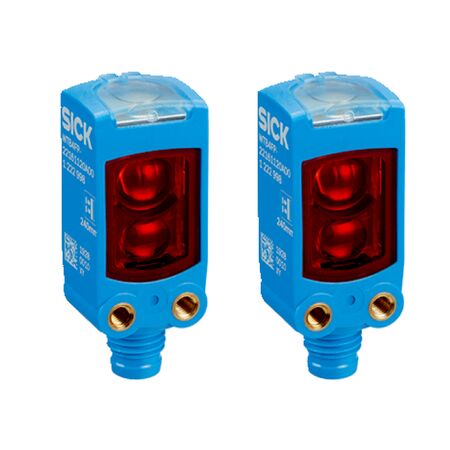

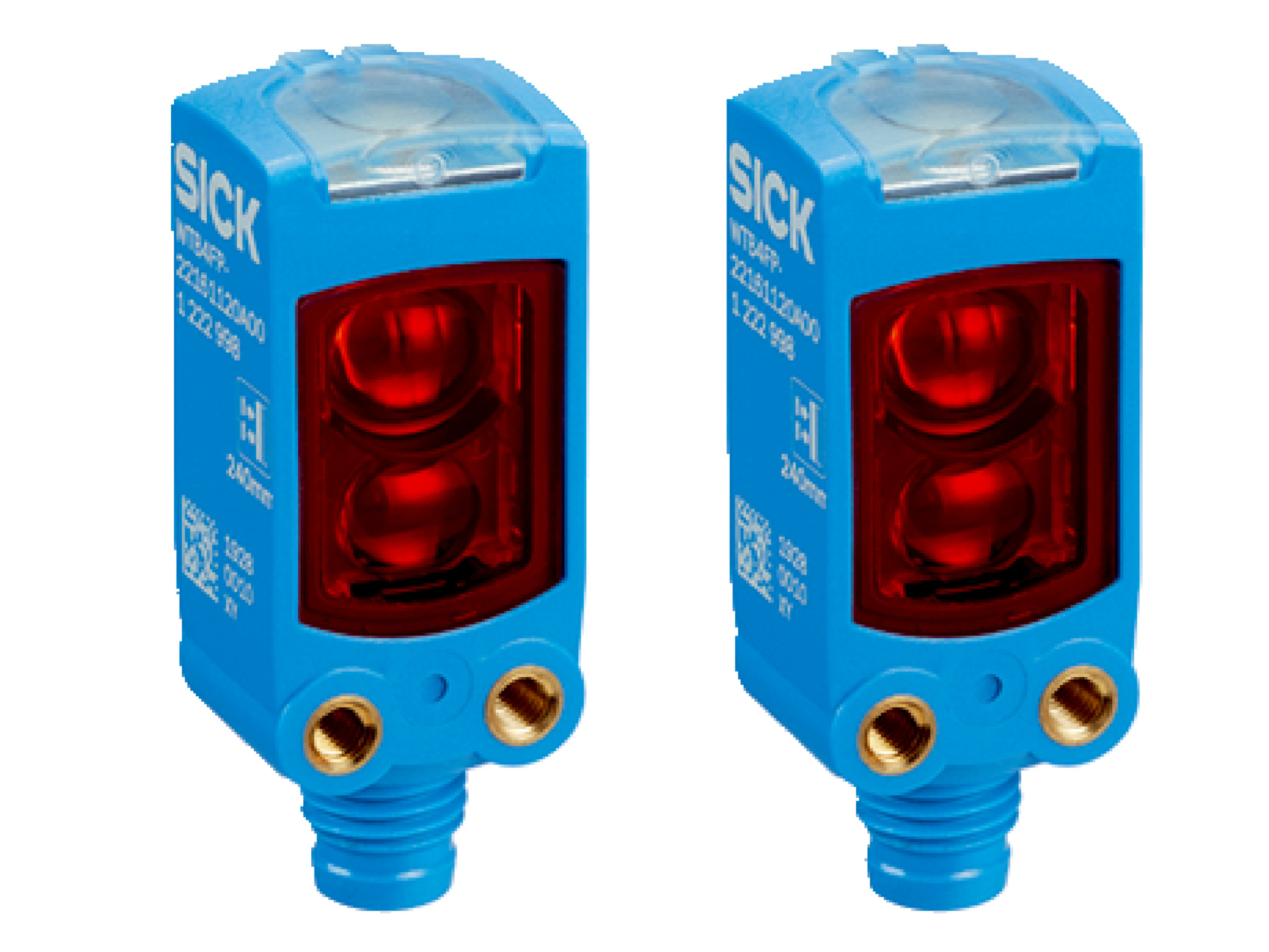

MultiPulse Photoelectric Proximity Sensor | IP67 Rated | 30mm to 150mm Detection Zone | 10Hz Pulse Frequency | by SICK
The MultiPulse Photoelectric Proximity Sensor is designed for industrial automation, featuring a detection zone of 30mm to 150mm and a pulse frequency of 10Hz. With an IP67 enclosure rating, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and material handling applications. This sensor operates efficiently within a temperature range of -40°C to +60°C, providing durability and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of sensors: 2 pieces
- Detection zone: 30 mm to 150 mm
- Remission: 6% to 90%
- Pulse frequency: 10 Hz
- Response time: ≤ 100 ms
- Type of light: Visible red light
- Wavelength: 650 nm
- Light spot size at 50 mm distance: Ø 7 mm
- Connection type: Connector M8, 3-pin
- Voltage supply: Via safety controller
- Enclosure rating: IP67 (EN 60529)
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 50mm x 100mm x 20mm
- Weight: 0.2 kg
Key Features
- Natural protection due to the material
- Detection zone from 30 mm to 150 mm
- Two WTB4F MultiPulse sensors supplied
- Visible red light with 650 nm wavelength
- Pulse frequency of 10 Hz and response time ≤ 100 ms
- Connector M8, 3-pin connection
- Enclosure rating IP67 for dust and water protection
- Operating temperature range from –40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and safety controllers.
Applications
- Industrial automation for object detection
- Safety monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 rated enclosure reduces waste by extending product life
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SYS/SGD-W4150000002W4F MultiPulse Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
