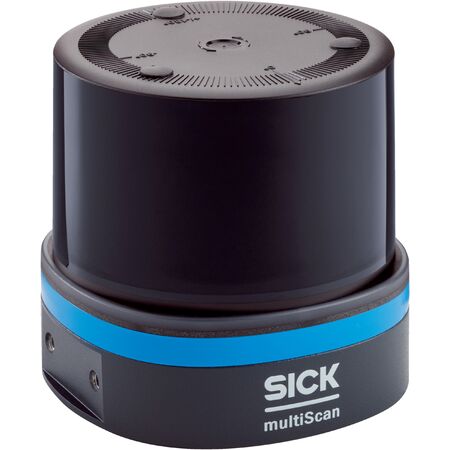

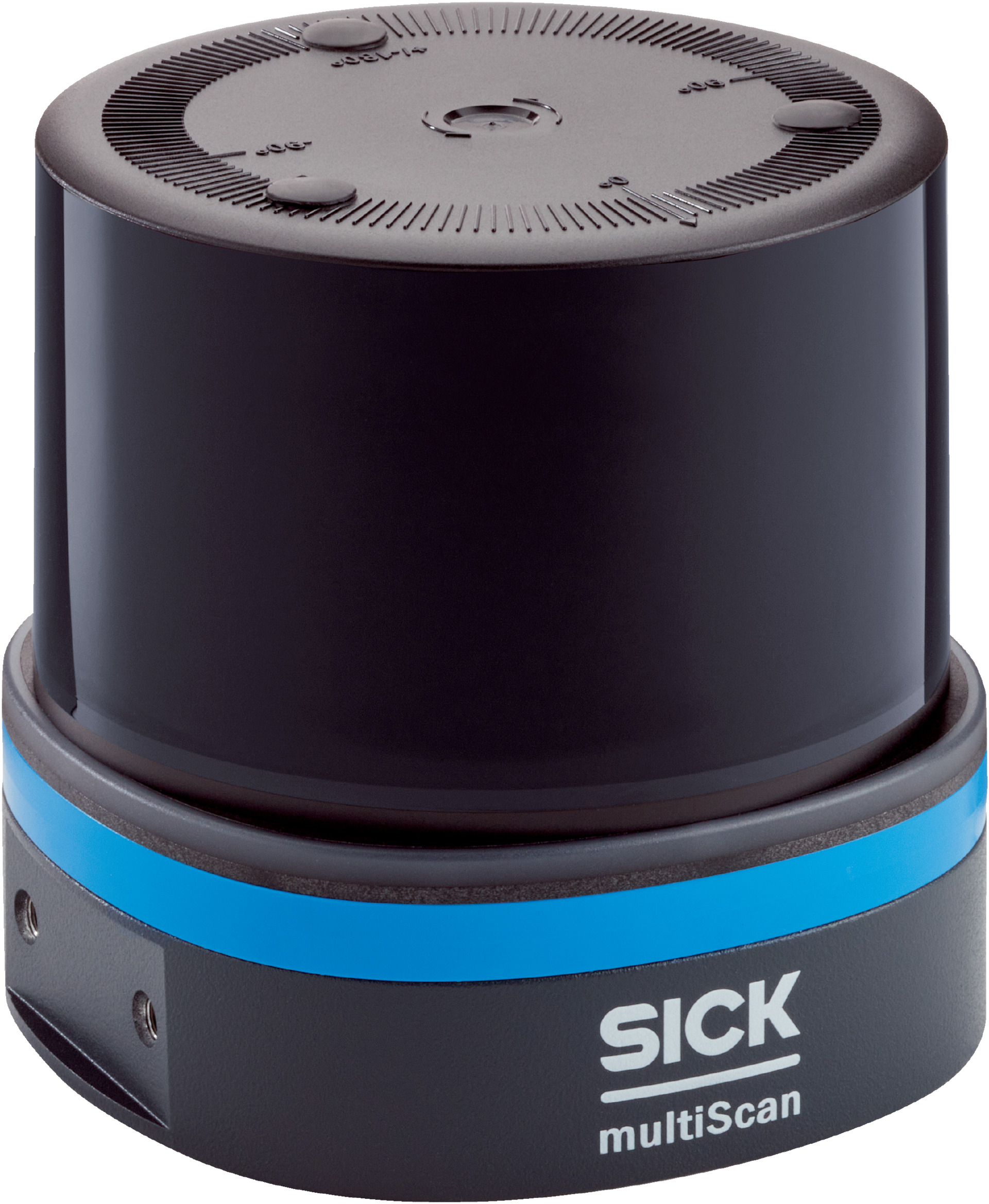

multiScan136 Laser Scanner | 360° Horizontal & 65° Vertical Aperture | 20 Hz Scanning Frequency | by SICK
The multiScan136 Laser Scanner is engineered for precision in 3D object detection and measurement, featuring a 360° horizontal and 65° vertical aperture angle. With an infrared light source and a scanning frequency of 20 Hz, it operates effectively in both indoor and outdoor environments. Ideal for industries like automotive and construction, this robust scanner ensures reliable performance with IP65, IP67, IP69, and IPX9K ratings, making it perfect for harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Statistical measurement procedure
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 360°, Vertical 65°
- Horizontal angular resolution: 0.125° with 2 high-resolution scan layers
- Vertical angular resolution: Approx. 2.5°
- Scanning frequency: 20 Hz
- Working range: 0.05 m to 60 m
- Spot size: 5.3 mrad (0.3°) and 7.5 mrad (0.3° + 0.125°)
- Amount of evaluated echoes: 3
- Connection type: 2 x M12 round connectors
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 10 W, max 35 W for 5 seconds
- Housing material: AlSi12 with polycarbonate optics cover
- Enclosure rating: IP65, IP67, IP69, IPX9K
- Protection class: III (IEC 61140:2016-11)
- Electrical safety: IEC 61010-1:2010-06
- MTBF: 50 years
- Scan/frame rate: 216,000 to 648,000 measurement points per second
- Response time: ≤ 50 ms field evaluation, typically 100 ms
- Systematic error: ± 50 mm
- Statistical error: ≤ 15 mm
- Number of field sets: 48
- Simultaneous evaluation cases: 20
- Ethernet: TCP/IP, UDP/IP with 100 Mbit/s data rate
- Digital inputs/outputs: 8 I/O (Multiport)
- Optical indicators: 4 LEDs
- Configuration software: SOPAS Air (browser based), SOPAS ET
- Ambient operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Permissible relative humidity: ≤ 90% RH, non-condensing
- Ambient light immunity: 100 klx
- Dimensions (H x L x W): 99mm x 100mm x 100mm
- Weight: 0.7 kg
Key Features
- 360° horizontal and 65° vertical aperture angle with 2 high-resolution scan layers
- Infrared light source (850 nm) with laser class 1 safety
- Scanning frequency of 20 Hz with up to 648,000 measurement points per second
- Working range from 0.05 m to 60 m
- Robust housing with IP65, IP67, IP69, and IPX9K ratings
- Multiple digital add-ons including multi-echo technology and reflector detection
- Ethernet interface with 100 Mbit/s data transmission rate
- Wide ambient operating temperature range from -40 °C to +50 °C
- Shock and vibration resistant for industrial environments
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Indoor and outdoor environments
- Automotive, agricultural, forestry, earthmoving, and construction machinery
- 3D object detection and measurement data output
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (typ. 10 W)
- Durable housing materials extend product lifespan reducing waste
- Supports precise measurement reducing resource waste in applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MULS1AA-112211 multiScan136 laser scanner is available for immediate purchase, ideal for industrial and commercial applications requiring precise 3D scanning and object detection.
