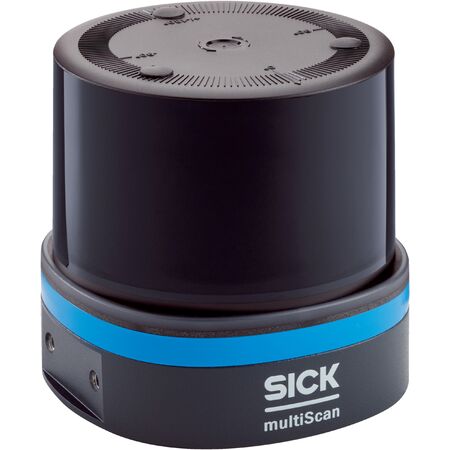

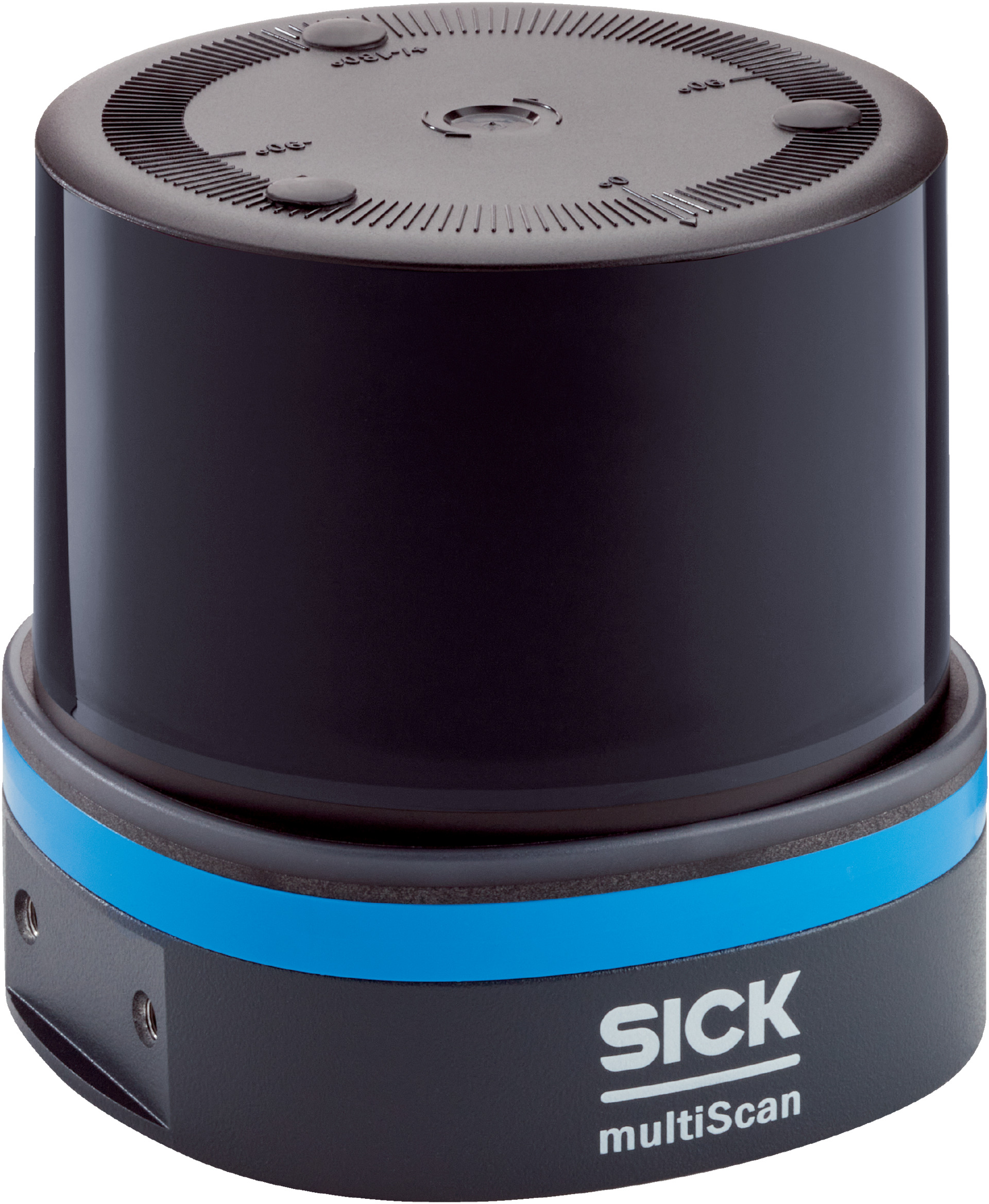

multiScan136 Laser Scanner | 360° Horizontal Aperture | IP65/IP67/IP69K Rated | 20 Hz Scanning Frequency | by SICK
The multiScan136 Laser Scanner is designed for precise measurement in various applications, featuring a 360° horizontal aperture angle and a robust IP65/IP67/IP69K rated housing. With an infrared light source and a high scanning frequency of 20 Hz, it's perfect for indoor and outdoor environments, including automotive and construction machinery. Built for durability and reliability, this scanner ensures optimal performance in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Statistical measurement procedure
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 360°, Vertical 65°
- Scanning frequency: 20 Hz
- Angular resolution: Horizontal 0.125°, 1°, 0.5°; Vertical approx. 2.5° to 5°
- Working range: 0.05 m to 60 m
- Spot size: 5.3 mrad (0.3°) to 7.5 mrad
- Amount of evaluated echoes: 3
- Connection type: 2 x M12 round connector
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 10 W, max 35 W for 5 s
- Housing material: AlSi12 with polycarbonate optics cover
- Enclosure rating: IP65, IP67, IP69, IPX9K
- Protection class: III (IEC 61140:2016-11)
- Electrical safety: IEC 61010-1:2010-06
- Scan/frame rate: 216,000 to 648,000 measurement points per second
- Response time: ≤ 50 ms
- Systematic error: ± 50 mm
- Statistical error: ≤ 15 mm
- Interfaces: Ethernet TCP/IP, UDP/IP, 100 Mbit/s
- Digital inputs/outputs: 8 I/O depending on system plug
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Permissible relative humidity: ≤ 90% non-condensing
- Dimensions (H x L x W): 99mm x 100mm x 100mm
- Weight: 0.7 kg
Key Features
- 360° horizontal aperture angle with 65° vertical aperture
- Infrared light source (850 nm) with laser class 1 safety
- High scanning frequency of 20 Hz
- Multiple angular resolution options including 0.125° and 1°
- Working range from 0.05 m up to 60 m
- Robust housing with IP65, IP67, IP69, and IPX9K ratings
- Supports multi-echo technology and reflector detection
- Ethernet interface with 100 Mbit/s data transmission
- Shock and vibration resistant for harsh environments
- Operating temperature range from -40 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical standards to ensure compliance and optimal performance.
Applications
- Indoor and outdoor environments
- Automotive applications
- Agricultural and forestry machinery
- Earthmoving and construction machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient infrared laser technology reduces power consumption
- Durable housing minimizes waste through extended product life
- Supports precise measurement reducing resource waste in applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MULS1AA-112211 multiScan136 laser scanner is available for immediate purchase, ideal for industrial, automotive, agricultural, and construction applications requiring precise and reliable scanning.
