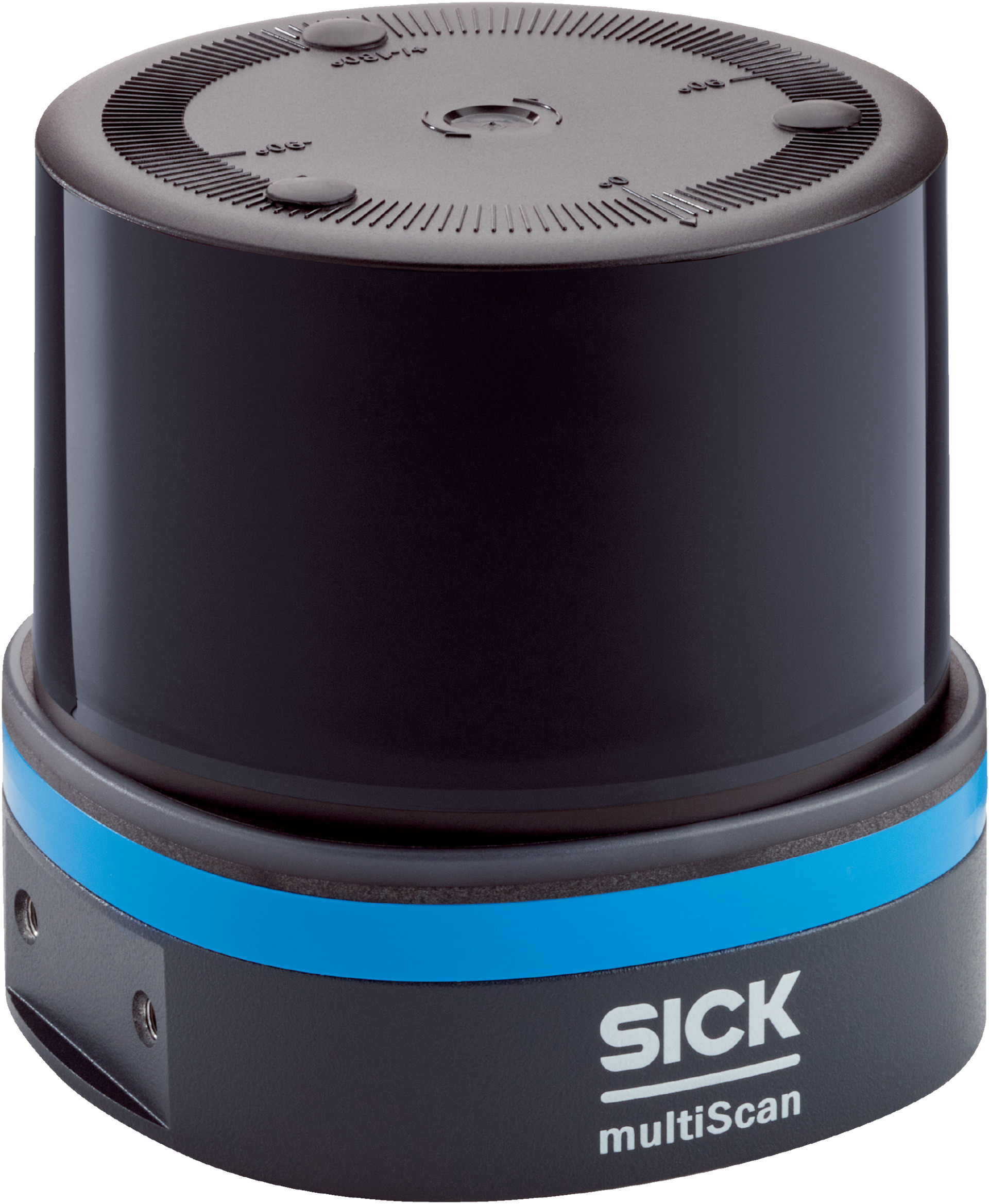

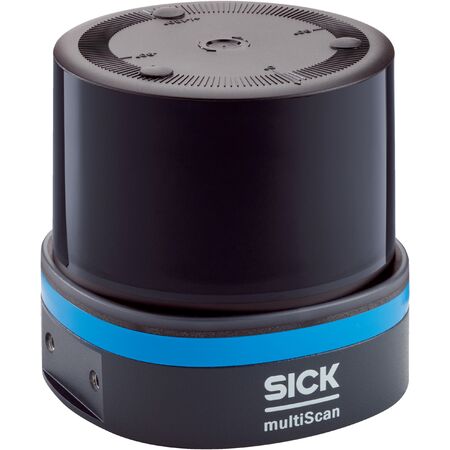

multiScan165 Laser Scanner | 360° Horizontal & 42° Vertical Aperture | 20 Hz Scanning Frequency | by SICK
The multiScan165 Laser Scanner is designed for precise 3D object detection, featuring a 360° horizontal and 42° vertical aperture angle with 16 scan layers. Ideal for both indoor and outdoor applications in industries like automotive and construction, this robust scanner operates with an infrared light source and offers a high scanning frequency of 20 Hz, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Statistical measurement procedure
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 360°, Vertical 42°
- Horizontal angular resolution: 0.5°, 16 scan layers
- Vertical angular resolution: Approx. 2.5°
- Scanning frequency: 20 Hz
- Working range: 0.05 m to 62 m depending on reflection and ambient light
- Spot size: 5.3 mrad (0.3°) to 7.5 mrad
- Amount of evaluated echoes: 3
- Connection type: 2 x M12 round connectors
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 10 W, max 35 W for 5 seconds
- Housing material: AlSi12 with polycarbonate optics cover
- Enclosure rating: IP65, IP67, IP69, IPX9K
- Protection class: III (IEC 61140:2016-11)
- Electrical safety: IEC 61010-1:2010-06
- MTBF: 50 years
- MTTFD: > 100 years at 25°C (EN ISO 13849-1:2015)
- Scan/frame rate: 216,000 to 648,000 measurement points per second
- Response time: ≤ 50 ms
- Systematic error: ± 35 mm
- Statistical error: ≤ 10 mm
- Integrated application: 3D Object Detection
- Number of field sets: 48
- Simultaneous evaluation cases: 20
- Ethernet: TCP/IP, UDP/IP, 100 Mbit/s
- Digital inputs/outputs: 8 (Multiport), depending on system plug
- Optical indicators: 4 LEDs
- Configuration software: SOPAS Air (browser based), SOPAS ET
- Operating temperature: -40°C to +50°C
- Storage temperature: -40°C to +75°C
- Permissible relative humidity: ≤ 90% non-condensing
- Ambient light immunity: 100 klx
- Electromagnetic compatibility: EN 61000-6-3:2007+A1:2011, EN 61000-6-2:2005
- Vibration resistance: 10 Hz to 1000 Hz sine resonance scan
- Shock resistance: up to 50 g
- Dimensions (H x L x W): 99mm x 100mm x 100mm
- Weight: 0.7 kg
Key Features
- 360° horizontal and 42° vertical aperture angle with 16 scan layers
- Infrared light source (905 nm) with laser class 1 safety
- High scanning frequency of 20 Hz and scan/frame rate up to 648,000 measurement points per second
- Robust housing with IP65, IP67, IP69, and IPX9K ratings for harsh environments
- Multiple digital add-ons including reliability package, multi-echo technology, interlaced mode, and IMU
- Wide working range from 0.05 m to 62 m depending on reflection factor and ambient light
- Advanced interfaces including Ethernet with TCP/IP and UDP/IP, and multiple digital inputs/outputs
- High electromagnetic compatibility and vibration/shock resistance
- Long MTBF of 50 years and MTTFD over 100 years at 25°C
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Indoor and outdoor use for 3D object detection
- Suitable for automotive, agricultural, forestry, earthmoving, and construction machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient infrared laser technology reduces power consumption
- Durable and robust design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MULS1AA-114322 multiScan165 laser scanner is available for immediate purchase, ideal for industrial and commercial applications requiring precise 3D object detection.
