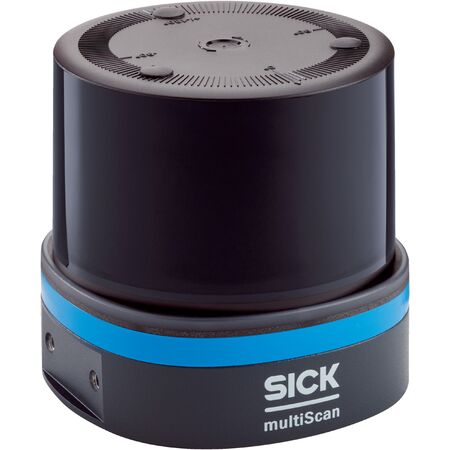

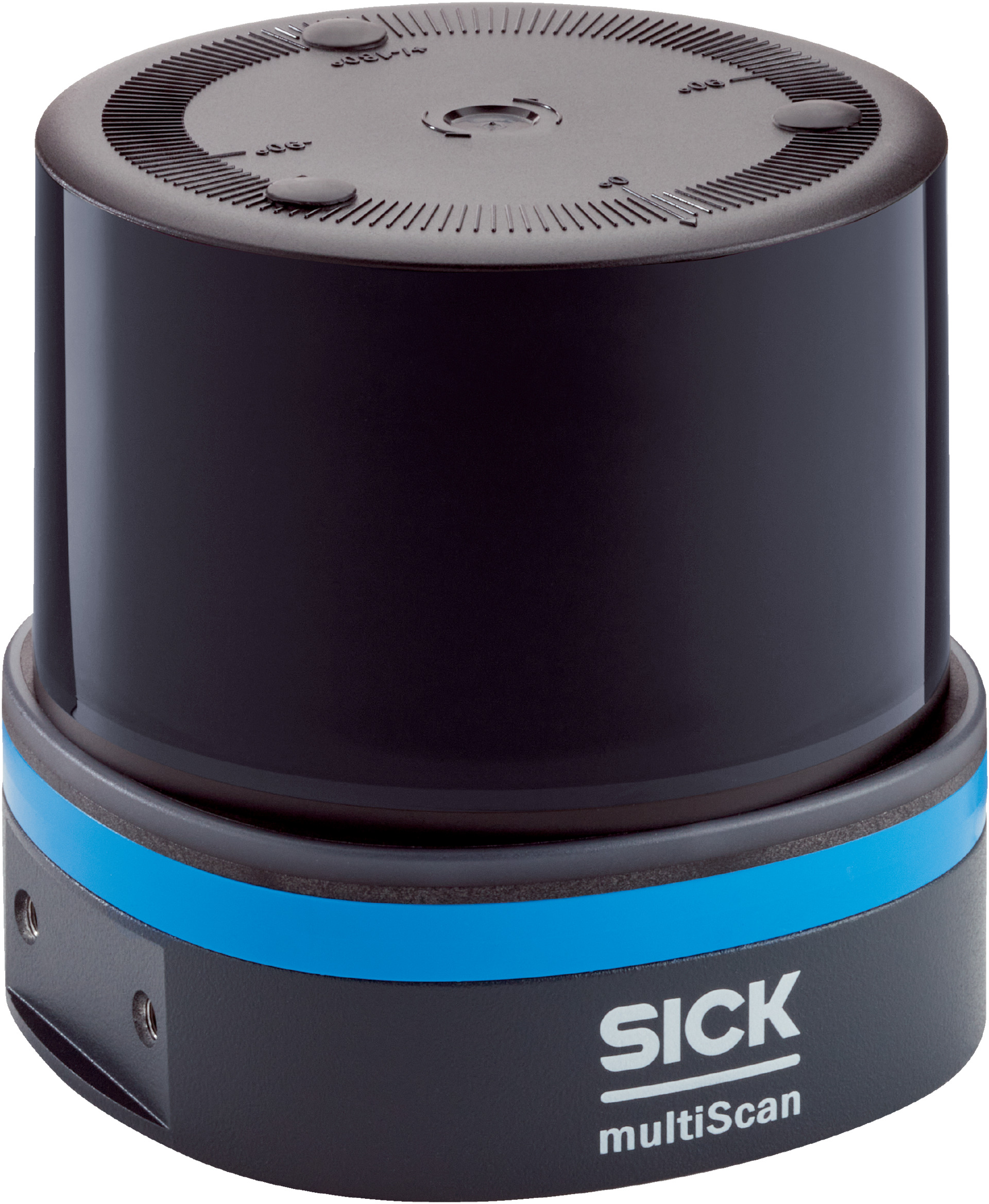

multiScan165 Laser Scanner | 360° Horizontal & 42° Vertical Aperture | IP65/IP67/IP69K Rated | by SICK
The multiScan165 Laser Scanner is designed for precise measurement in various applications, featuring a 360° horizontal and 42° vertical aperture angle. With a high scanning frequency of up to 40 Hz and robust IP65/IP67/IP69K protection, it's perfect for both indoor and outdoor environments, including automotive and construction machinery. This scanner ensures enhanced detection with multiple reflection factors and is ideal for industrial automation and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 99mm x 100mm x 100mm
- Weight: 0.7 kg
Key Features
- Statistical measurement procedure with infrared light source (905 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- 360° horizontal and 42° vertical aperture angle
- High scanning frequency up to 40 Hz with 16 interlaced scan layers
- Working range from 0.05 m to 62 m
- Multiple reflection factor scanning ranges up to 62 m
- 3 evaluated echoes for enhanced detection
- Robust housing with IP65, IP67, IP69, and IPX9K protection ratings
- Power consumption typically 10 W, max 35 W during power-up
- Integrated digital add-ons including multi-echo technology and IMU
- High scan/frame rate up to 648,000 measurement points per second
- Response time ≤ 50 ms with ±35 mm systematic error and ≤10 mm statistical error
- Ethernet interface with 100 Mbit/s data transmission
- Configurable via SOPAS Air and SOPAS ET software
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety and operational standards.
Applications
- Indoor and outdoor environments
- Automotive applications
- Agricultural and forestry machinery
- Earthmoving and construction machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable and robust design reduces need for frequent replacements
- Low power consumption contributes to energy efficiency
- High measurement accuracy reduces waste and improves operational efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MULS1AA-114322 multiScan165 Laser Scanner is available for immediate purchase, ideal for industrial automation, safety monitoring, and object detection applications.
