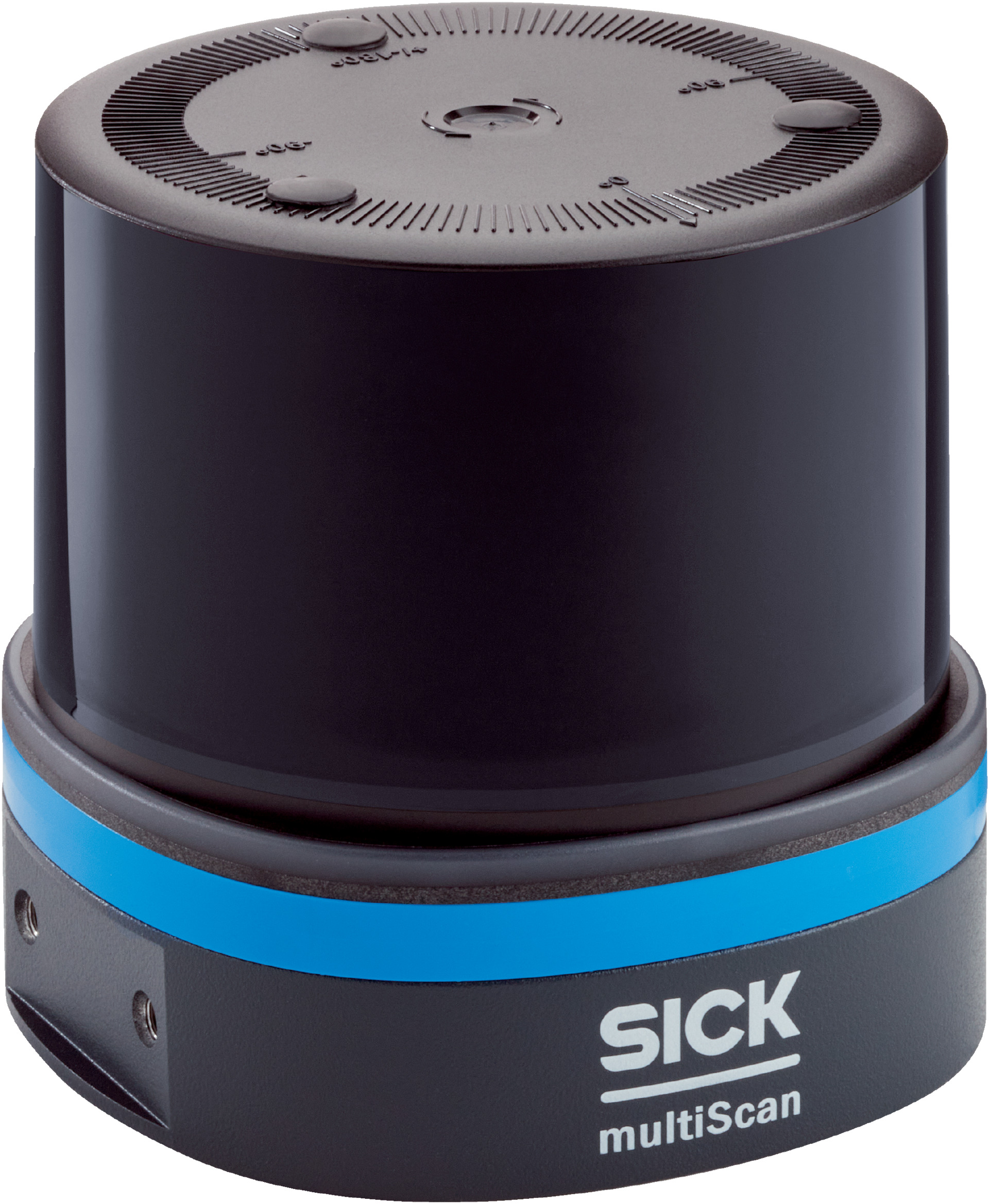

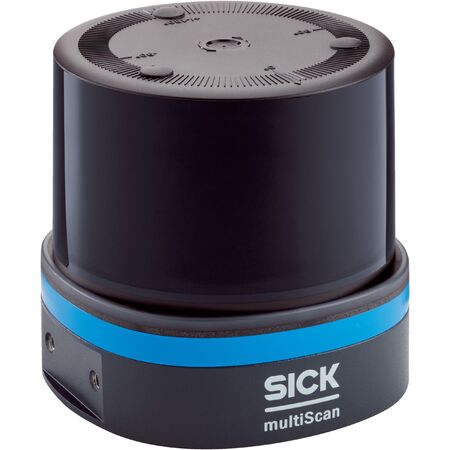

multiScan165 Laser Scanner | 360° Horizontal & 42° Vertical Aperture | IP65/IP67/IP69K Rated | by SICK
The multiScan165 Laser Scanner is designed for precision measurement in industrial automation, featuring a 360° horizontal and 42° vertical aperture angle with 16 interlaced scan layers. With an infrared light source and robust IP65/IP67/IP69K housing, it ensures reliable performance in harsh environments, making it ideal for construction, earthmoving, and automotive applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: Statistical measurement procedure
- Light source: Infrared (905 nm), Laser class 1 (IEC 60825-1:2014)
- Aperture angle: Horizontal 360°, Vertical 42°
- Angular resolution: Horizontal 0.125°, 16 scan layers interlaced; Vertical approx. 2.5°
- Scanning frequency: 20 Hz to 40 Hz between layers 4 and 13
- Working range: 0.05 m to 62 m depending on reflection and ambient light
- Spot size: 5.3 mrad (0.3°) and 7.5 mrad (0.3° + 0.125°)
- Evaluated echoes: 3
- Connection type: 2 x M12 round connectors
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 10 W, max 35 W for 5 seconds at power-up
- Housing material: AlSi12 with polycarbonate optics cover
- Enclosure rating: IP65, IP67, IP69, IPX9K
- Protection class: III (IEC 61140:2016-11)
- Electrical safety: IEC 61010-1:2010-06
- MTBF: 50 years
- Scan/frame rate: 216,000 to 648,000 measurement points per second
- Response time: ≤ 50 ms
- Systematic error: ± 35 mm
- Statistical error: ≤ 10 mm
- Interfaces: Ethernet (TCP/IP, UDP/IP), 100 Mbit/s data rate, digital I/O
- Configuration software: SOPAS Air (browser-based), SOPAS ET
- Dimensions (H x L x W): 99mm x 100mm x 100mm
- Weight: 0.7 kg
Key Features
- 360° horizontal and 42° vertical aperture angle with 16 interlaced scan layers
- Infrared light source (905 nm) with laser class 1 safety
- High scanning frequency up to 40 Hz between layers 4 and 13
- Working range from 0.05 m up to 62 m depending on reflection factor and ambient light
- Multi-echo technology with up to 3 evaluated echoes
- Robust housing with IP65, IP67, IP69 and IPX9K protection ratings
- Low power consumption with typical 10 W and max 35 W at startup
- Advanced digital add-ons including data reduction, reflector detection, IMU, and PTP
- High measurement point rate up to 648,000 points per second
- Fast response time ≤ 50 ms with systematic error ± 35 mm and statistical error ≤ 10 mm
- Ethernet interface with TCP/IP, UDP/IP and 100 Mbit/s data transmission
- Configurable via SOPAS Air and SOPAS ET software
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and industrial sensor integration to ensure compliance and optimal performance.
Applications
- Indoor and outdoor use for industrial automation and safety applications
- Suitable for earthmoving, construction machinery, agricultural and forestry machinery
- Measurement and detection in automotive and industrial environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial environments
- Durable and robust design minimizes replacement frequency and electronic waste
- Supports automation that can optimize resource use and reduce environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MULS1AA-114322 multiScan165 laser scanner is available for immediate purchase, ideal for industrial automation, safety, and measurement applications in harsh environments.
