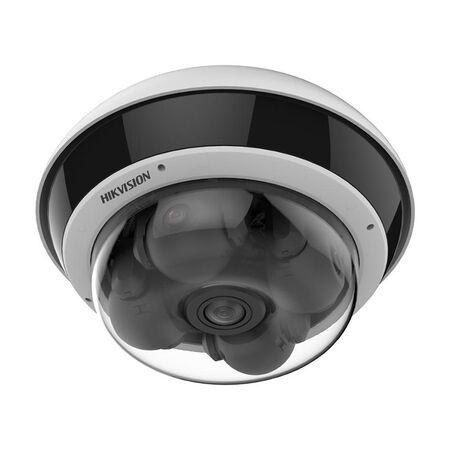

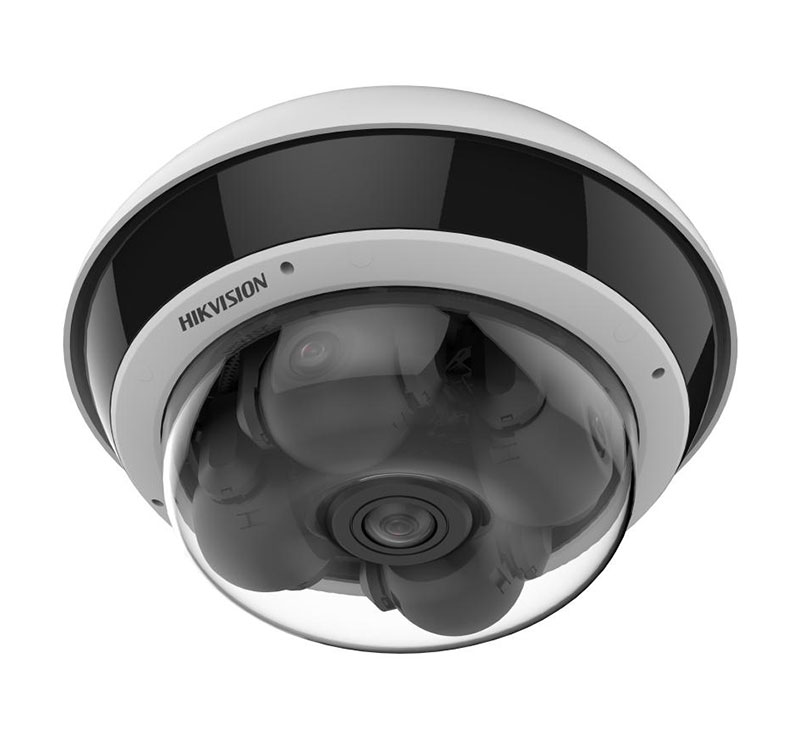

Multisensor Camera 2.8-8mm and 2mm Lens Hikvision
Hikvision multisensor camera features a 2.8-8mm lens and a 2mm lens. Ideal for CCTV wide area surveillance installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision PanoVu 5MP Multisensor IP Camera, 5-Directional Multisensor CCTV Camera, DS-2CD6D55G2-IZHS(2.8-8mm/2mm)
Technical Specifications
- Camera Type: 5-directional multisensor network camera
- Resolution: 5MP per imaging channel; maximum 2560 × 1920
- Lens Configuration: Four motorised varifocal lenses, 2.8–8mm, plus one fixed 2mm lens ([assets.hikvision.com](https://assets.hikvision.com/prd/normal/all/doc/sm000054442/DS-2CD6D55G2-IZHS_Datasheet_20260326.pdf?utm_source=openai))
- Field of View: Varifocal lens horizontal FOV 96.5°–48.9°; fixed lens horizontal FOV 71.68° ([assets.hikvision.com](https://assets.hikvision.com/prd/normal/all/doc/sm000054442/DS-2CD6D55G2-IZHS_Datasheet_20260326.pdf?utm_source=openai))
- Infrared: 850nm IR illumination, up to 30m ([assets.hikvision.com](https://assets.hikvision.com/prd/normal/all/doc/sm000054442/DS-2CD6D55G2-IZHS_Datasheet_20260326.pdf?utm_source=openai))
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Power Supply: 12V DC, maximum 21.6W, or IEEE 802.3at Type 2 PoE, maximum 25W ([sourcesecurity.com](https://www.sourcesecurity.com/datasheets/hikvision-ds-2cd6d55g2-izhs-nfc-ip-camera/co-3425-ga/ds-2cd6d55g2-izhs-nfc-datasheet-20240221.pdf?utm_source=openai))
- Ingress Protection: IP67
- Impact Protection: IK10
- Network Features: H.265 encoding, region of interest, target cropping, motion detection and perimeter protection
- Operating Temperature: -40°C to 60°C
- Environmental Rating: NEMA 4X anti-corrosion protection
- Dimensions (H x L x W): 148mm x 290mm x 290mm
- Weight: 4.7 kg
Key Features
- Five integrated imaging channels for wide-area surveillance
- Four adjustable motorised varifocal lenses provide flexible scene coverage
- Additional 2mm fixed lens for broad-area monitoring
- Up to 360° coverage when correctly configured and installed
- 5MP resolution per primary imaging channel
- Built-in IR illumination up to 30m
- Human and vehicle target classification for perimeter protection
- IP67 weather resistance and IK10 impact resistance
- Supports PoE for simplified network installation
- H.265+ compression can reduce bandwidth and storage requirements
Professional Installation Requirements
- Installation should be carried out by a qualified CCTV or security systems installer. Correct mounting, network configuration, PoE supply and camera alignment are required for reliable coverage. Any mains-powered PoE equipment must be installed in accordance with applicable Australian electrical requirements.
Applications
- Wide-area CCTV surveillance
- Shopping centres, car parks and transport facilities
- Commercial buildings and industrial sites
- Perimeter monitoring and intrusion detection
- Public spaces requiring multiple viewing directions from one camera position
- Large indoor or outdoor areas requiring reduced camera infrastructure
Standards & Compliance
- RCM EMC compliance to AS/NZS CISPR 32:2015 is specified for the model datasheet ([manuals.plus](https://manuals.plus/m/3e9b2911e4f2d50b84967b28418a07757078b51ffe9b2507cfdd984489662690?utm_source=openai))
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements compared with less efficient compression formats
- PoE operation can reduce separate cabling and power infrastructure requirements
- RoHS and WEEE environmental compliance are specified in the product documentation ([manuals.plus](https://manuals.plus/m/3e9b2911e4f2d50b84967b28418a07757078b51ffe9b2507cfdd984489662690?utm_source=openai))
- IP67 and IK10 construction can support longer service life and reduce premature replacement waste
Warranty Information
Hikvision Oceania lists a five-year manufacturer warranty for qualifying premium project-oriented network camera series manufactured after 1 March 2022. The covered product list includes the Panoramic Series; confirm eligibility and regional purchase requirements with the authorised Australian distributor. ([hikvision.com](https://www.hikvision.com/content/dam/hikvision/au/banner-/project-oriented-products/5-year-Warranty.pdf?utm_source=openai))
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
