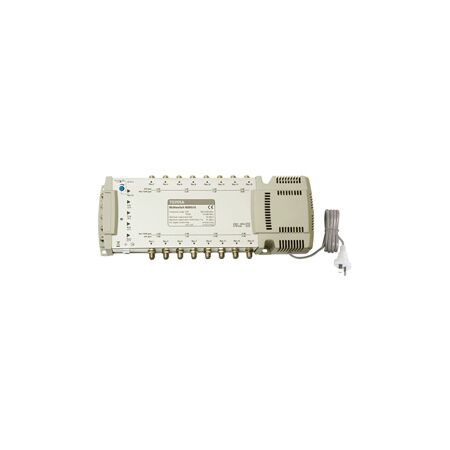

Multiswitch 5 In 16 Out | Mains Powered | Wideband
Multiswitch with 5 inputs and 16 outputs—ideal for large homes and small apartment blocks. Built for extensive satellite IF distribution, with mains power and high output for longer cable runs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multiswitch 5 In 16 Out | Mains Powered | Wideband
SKU: 21MM-MSR516
Alternatively Known As: Satellite Multiswitch, Wideband Multiswitch, 5x16 Multiswitch, Terra Satellite Distribution Switch
Technical Specifications
- Frequency range: TERR. 47 - 862MHz; SAT 950 - 2400MHz
- Built-in power supply for remote DC feeding
- System isolation exceeds Foxtel specifications
- Signal level control on multiswitch for easy system level balancing
- Graduated output for balanced levels on long and short cable runs
- Supports cable runs up to 45m with high output (up to 92dBµV)
- Dimensions (H x L x W): 50mm x 200mm x 250mm
- Weight: 1.5 kg
Key Features
- Frequency range: TERR. 47 - 862MHz; SAT 950 - 2400MHz
- Built in power supply for remote DC feeding
- System isolation exceeds Foxtel specifications
- Signal level control on multiswitch ensures easy system level balancing at all ports
- Graduated output on multiswitches allows balanced levels on long and short cable runs
- Longer cable runs (up to 45m) can be achieved with the high output on multiswitches (up to 92dBµV)
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal system performance and compliance with safety standards.
Applications
- Large homes
- Small blocks of six apartments
- Ideal for up to 8 dual outlets where all outlets are within 40m of the Multiswitch
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Efficient signal distribution reduces the need for multiple satellite receivers, lowering energy consumption.
- Durable European quality design promotes long product life and reduces electronic waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to Terra or Matchmaster for specific warranty details.
Available Now
The Terra Multiswitch 5 In 16 Out Mains Powered Wideband is available now for immediate purchase. Ideal for satellite signal distribution in large homes and small apartment blocks.
