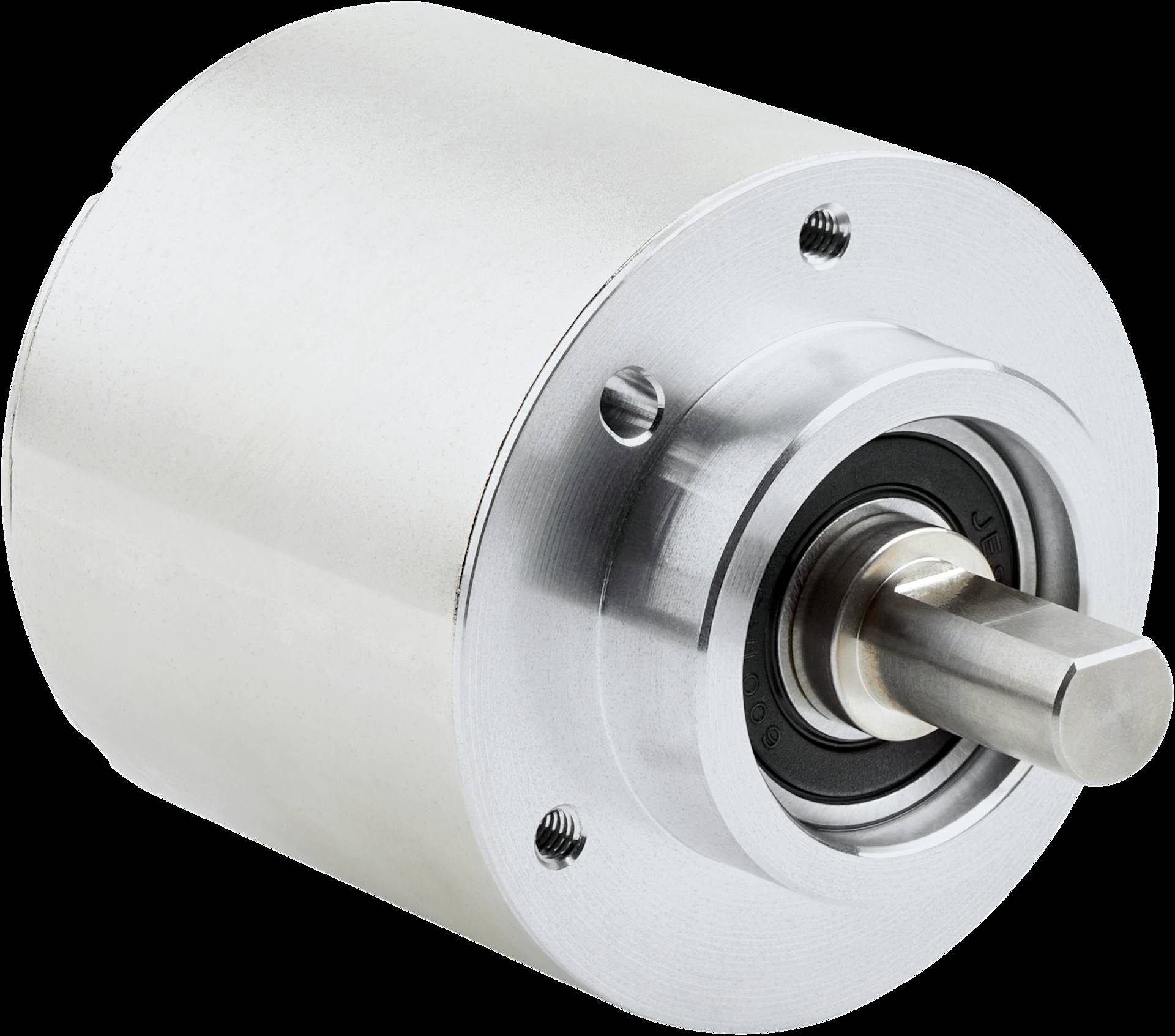

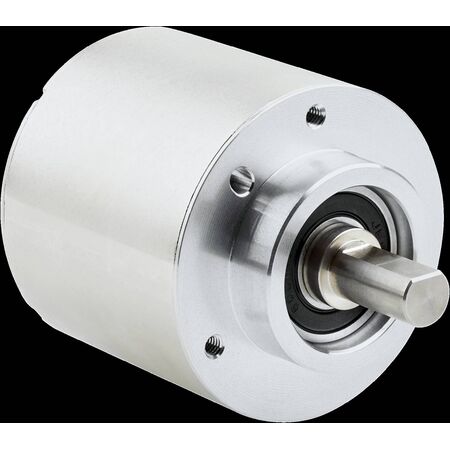

Multiturn Absolute Encoder ANS/ANM58 | 18-Bit Singleturn & 16-Bit Multiturn | PROFINET Interface | by SICK
The ANS/ANM58 multiturn absolute encoder is designed for industrial automation, featuring an 18-bit optical singleturn measuring system and a 16-bit mechanical multiturn stage. With a low installation depth of just 39 mm and a PROFINET interface, it’s perfect for precise movement monitoring and process control in machinery with limited space.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Multiturn Absolute Encoder ANS/ANM58 | 18-Bit Singleturn & 16-Bit Multiturn | PROFINET Interface | by SICK
Brand: SICK
SKU: 1148709
Alternatively Known As: ANS ANM58 Absolute Encoder, SICK 58mm Encoder, PROFINET Absolute Encoder
Technical Specifications
- Multiturn absolute encoder
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Connection: Male and female connectors
- Direction of connection: Axial
- Installation depth: 39 mm (radial type)
- Optical singleturn measuring system: 18-bit resolution
- Mechanical multiturn stage: 16-bit resolution
- PROFINET interface with Encoder Profile version 4.2
- Supports Isochronous Real Time (IRT) function for synchronous processes
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.3 kg
Key Features
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm for radial type
- PROFINET interface with Encoder Profile version 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data
- Precise 18-bit optical singleturn measuring system
- Mechanical 16-bit multiturn stage for reliable data
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with PROFINET systems and electrical wiring standards to ensure proper integration and safety.
Applications
- Industrial automation for precise movement monitoring
- Process control systems requiring accurate position feedback
- Integration in machinery with limited installation space
- Condition-based system maintenance through diagnostic data
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables condition-based maintenance reducing unnecessary replacements and waste
- Supports efficient process control improving energy usage in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ANS/ANM58 Absolute Encoder is available for immediate purchase, ideal for industrial automation and motion control applications requiring high precision and reliable data.
