The ANS/ANM58 multiturn absolute encoder is designed for precise movement monitoring in industrial automation. Featuring a PROFINET interface and an 18-bit optical singleturn measuring system, it ensures accurate position feedback even in limited installation spaces. Ideal for process control systems, this encoder supports condition-based maintenance, enhancing efficiency and reducing waste.
Sign in
Please login to continue to your account.

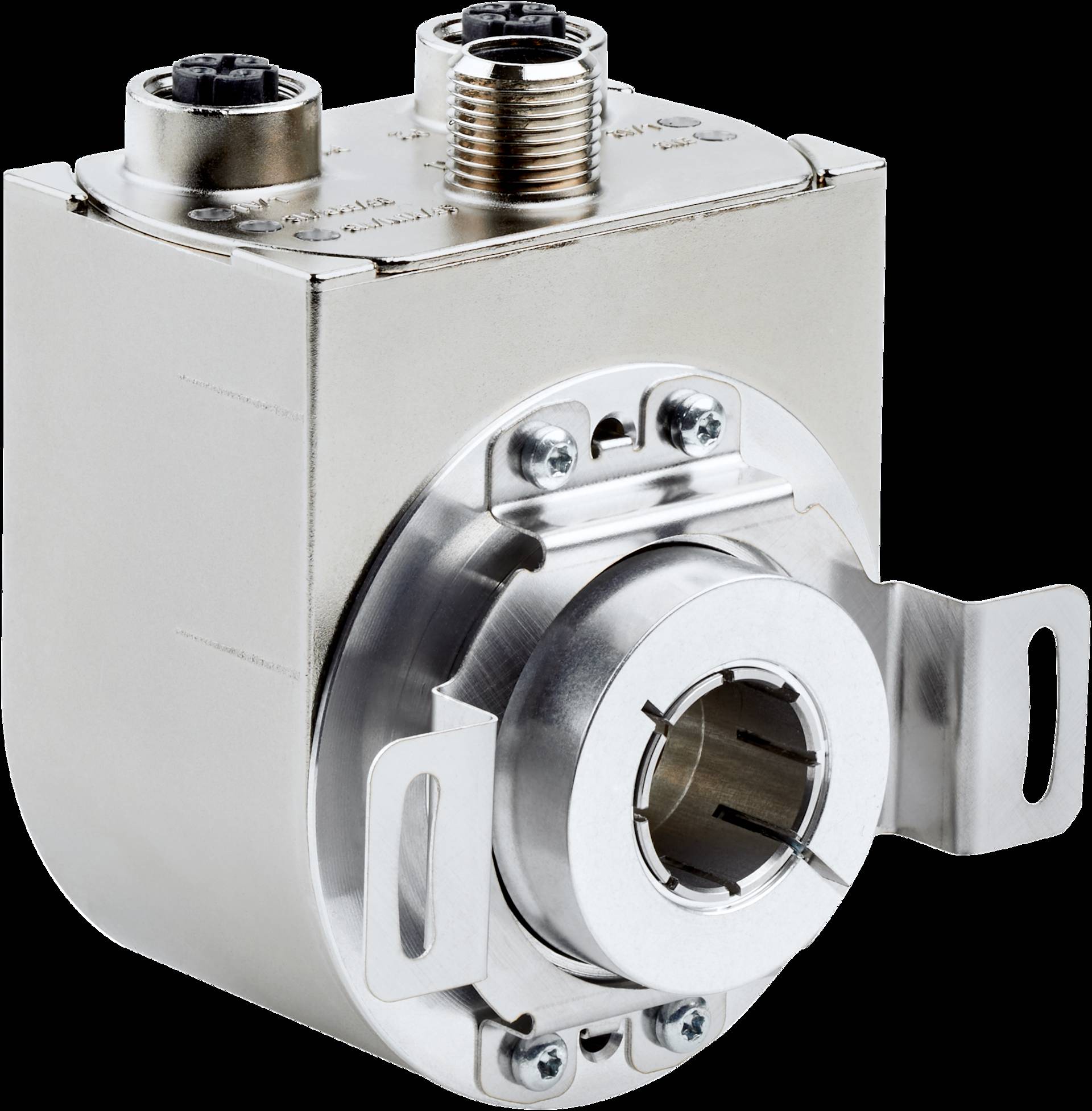

Product Name/Title: Multiturn Absolute Encoder ANS/ANM58 | PROFINET Interface | 18-Bit Optical Measuring | by SICK
Brand: SICK
SKU: 1146651
Alternatively Known As: Absolute encoder 58mm, PROFINET absolute encoder, multiturn encoder, optical absolute encoder
- Multiturn absolute encoder
- Mechanical design: through hollow shaft
- Shaft diameter: 15 mm with front clamp
- Connection types: male and female connectors
- Direction of connection: radial
- Installation depth: 39 mm
- 18-bit optical singleturn measuring system
- 16-bit mechanical multiturn stage
- PROFINET interface with Encoder Profile version 4.2
- Supports Isochronous Real Time (IRT) function for synchronous processes
- Parameterization and diagnostics via TIA Portal or SICK Engineering Tool
- Dimensions (H x L x W): 58mm x 39mm x 58mm
- Weight: 0.5 kg
- Radial and axial type with shaft and flange variants
- Low installation depth of only 39 mm for radial type
- PROFINET interface with Encoder Profile version 4.2
- Parameterization via TIA Portal or SICK Engineering Tool
- Configuration and visualization of numerous diagnostic data
- Precise 18-bit optical singleturn measuring system
- Mechanical 16-bit multiturn stage for reliable data
- Installation by qualified personnel with experience in industrial automation and PROFINET systems is recommended to ensure proper integration and configuration.
- Industrial automation for precise movement monitoring
- Process control systems requiring accurate position feedback
- Integration in machinery with limited installation space
- Condition-based system maintenance and diagnostics
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Enables condition-based maintenance reducing unnecessary replacements and waste
- Supports efficient process control improving energy usage in industrial applications
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
The SICK ANS/ANM58 absolute encoder is available for immediate purchase, ideal for industrial automation and precise motion control applications.
