Mushroom Push Button 22.5mm | 40mm Blue Head | IP65/IP66/IP69K Rated by NHP
Mushroom push button with 22.5mm diameter and 40mm blue plastic head—ideal for industrial control panels and emergency stop applications. Built for durability, with IP65/IP66/IP69K protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

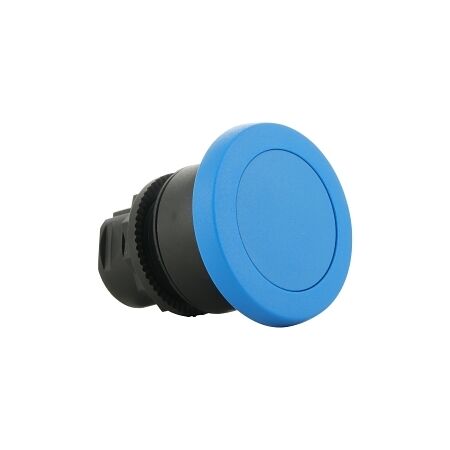

Product Name/Title: Sprecher and Schuh D7 PushButton 22.5mm Momentary Mushroom Plastic Head 40 mm Blue
Brand: NHP
SKU: D7PMM46
Alternatively Known As: Mushroom Push Button, Momentary Switch, Emergency Stop Button
Technical Specifications
- Electrical life at un in service cycles: 500,000 cycles
- Mechanical life service cycles: 10,000,000 cycles
- Operating temperature: -25 to 70 °C
- Diameter cap: 40 mm
- Hole diameter: 22.5 mm
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Max shock acceleration: 100 g
- Suitable for emergency stop: Yes
- Spring return: No
- Unlocking method: Pull-release
- Dimensions (H x L x W): 40mm x 40mm x 40mm
- Weight: 0.2 kg
Key Features
- 22.5mm pushbutton with a 40mm blue plastic head.
- IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery, emergency stop applications
- Commercial: Equipment requiring momentary pushbutton controls
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long mechanical life reduces waste and replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 PushButton 22.5mm Momentary Mushroom Plastic Head 40 mm Blue is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable control.
