Mushroom Push Button 30.5mm | IP65/IP66 Rated | Metal Front Ring by NHP
Mushroom push button with 30.5mm head and IP65/IP66 rating—ideal for industrial and commercial machinery control. Built for durability, with a metal front ring and non-latching 2-position switch.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

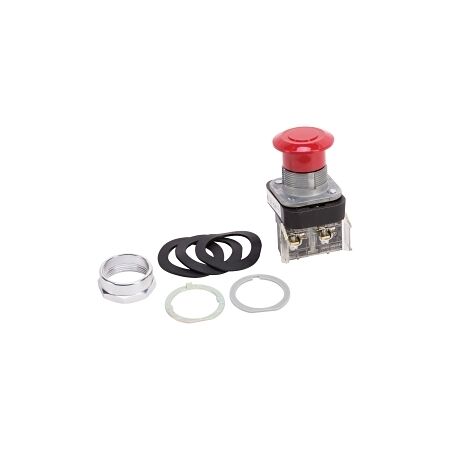

Product Name/Title: Allen-Bradley 800T PB 30.5mm Mushroom Head 2 Pos. Push Pull Non Illum 1N.C. Late Break Contact Red
Brand: NHP
SKU: 800TFX6D4
Alternatively Known As: Mushroom Push Button, 30.5mm Push Button Switch
Technical Specifications
- Number of contacts: 1N.C.
- Type of electric connection: Screw connection
- Colour button: Red
- Type of button: Mushroom
- With front ring: Yes
- Material front ring: Metal
- Degree of protection: IP65/IP66
- Number of command positions: 2
- Switching function: Non-latching
- Max shock acceleration: 100 g
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Suitable for illumination: No
- Hole diameter: 30.5 mm
- Operator diameter: 41.3 mm
- Dimensions (H x L x W): 30.5mm x 41.3mm x 41.3mm
- Weight: 0.2 kg
Key Features
- 30.5mm mushroom head design for easy operation.
- IP65/IP66 rated for protection against dust and water.
- Metal front ring for durability.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery control panels
- Commercial: Equipment operation
- General: Any application requiring a reliable push button switch
Standards & Compliance
- Complies with relevant safety and performance standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 800T PB 30.5mm Mushroom Head Push Button is available now for immediate purchase. Ideal for industrial and commercial applications.
