Mushroom Push Button Switch 22.5mm | 60mm Cap | IP65/IP66/IP69K Rated by NHP
Mushroom push button switch with 22.5mm diameter and 60mm cap—ideal for industrial control panels and emergency stop applications. Built for durability, with IP65/IP66/IP69K protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

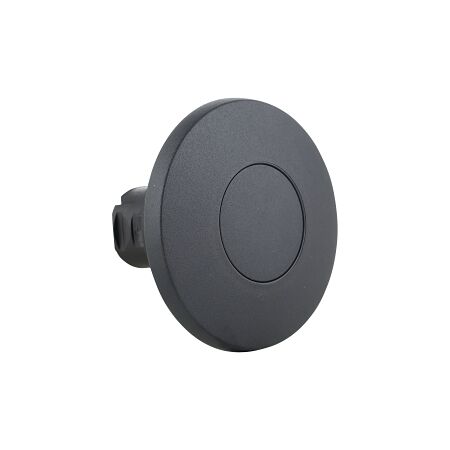

Product Name/Title: Sprecher and Schuh D7 PushButton 22.5mm Momentary Mushroom Plastic Head 60 mm Black
Brand: NHP
SKU: D7PMM62
Alternatively Known As: Mushroom Push Button Switch, Emergency Stop Button
Technical Specifications
- Electrical life at un in service cycles: 500,000 cycles
- Mechanical life service cycles: 10,000,000 cycles
- Operating temperature: -25 to 70 °C
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Max shock acceleration: 100 g
- Unlocking method: Pull-release
- Degree of protection: IP65/IP66/IP69K
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- Pushbutton diameter of 22.5mm with a 60mm cap.
- IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, and equipment
- Commercial: Emergency stop applications in various settings
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 PushButton 22.5mm Momentary Mushroom Plastic Head 60 mm Black is available now for immediate purchase. Ideal for industrial and commercial applications.
