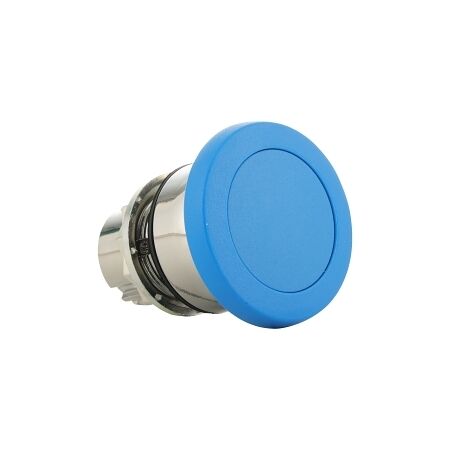

Mushroom Pushbutton 40mm | IP66 Rated | Metal Momentary | Blue by NHP
Mushroom pushbutton with 40mm diameter and IP66 rating—ideal for industrial control panels and emergency stop applications. Built for durability, with a metal front ring and high mechanical life of 10,000,000 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Metal Momentary Mushroom Head 40 mm Blue
Brand: NHP
SKU: D7MMM46
Alternatively Known As: Mushroom Pushbutton, Momentary Pushbutton, Emergency Stop Button
Technical Specifications
- Electrical life: 500,000 cycles
- Mechanical life: 10,000,000 cycles
- Operating temperature: -25 to 70 °C
- Diameter of cap: 40 mm
- Hole diameter: 22.5 mm
- Max vibration acceleration: 10 m/s²
- Max shock acceleration: 100 g
- Unlocking method: Pull-release
- Dimensions (H x L x W): 40mm x 22.5mm x 40mm
- Weight: 0.2 kg
Key Features
- IP66 rated for protection against dust and water.
- Metal front ring for durability.
- High mechanical life of 10,000,000 cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and functionality.
Applications
- Industrial: Control panels, machinery, emergency stop applications
Standards & Compliance
- Complies with relevant safety standards for industrial controls.
Environmental Benefits
- Durable design reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pushbutton 22.5 mm Metal Momentary Mushroom Head 40 mm Blue is available now for immediate purchase. Ideal for industrial control applications.
