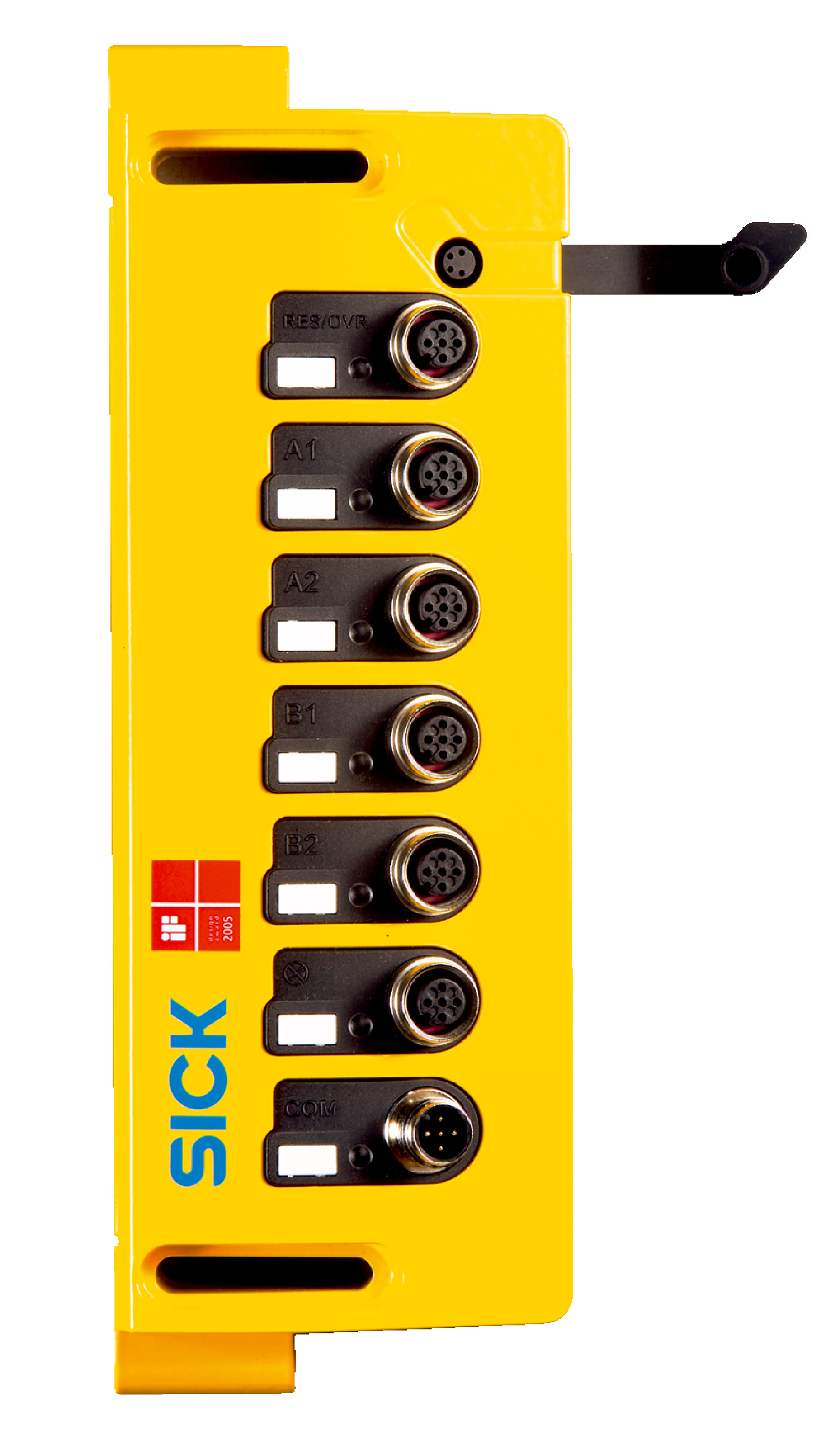

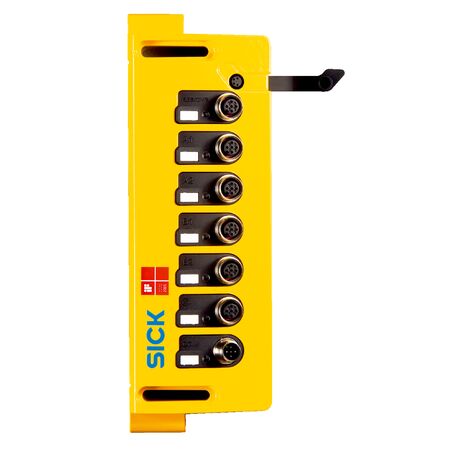

Muting Amplifier UE403-A0930 | Type 4 Safety Device | SIL 3 Compliance | IP65 Rated | by SICK
The Muting Amplifier UE403-A0930 is a Type 4 safety device designed for industrial safety systems requiring muting switching amplifiers. With SIL 3 compliance and an IP65 rated enclosure, it ensures reliable performance in harsh environments. Ideal for automated production lines, this amplifier features LED diagnostics and flexible mounting options, enhancing safety and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Muting Amplifier UE403-A0930 | Type 4 Safety Device | SIL 3 Compliance | IP65 Rated | by SICK
Brand: SICK
SKU: 1026287
Alternatively Known As: Muting Amplifier UE403, Safety Muting Amplifier, SICK UE403 Muting Controller
Technical Specifications
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 2 A
- Input current HIGH: 6 mA to 15 mA
- Input current LOW: -0.5 mA to 1.5 mA
- Output current for reset, override, C1: ≤ 400 mA
- Output current for muting sensors: ≤ 500 mA
- Muting lamp output current HIGH (monitored): 20 mA to 400 mA
- Muting lamp output current HIGH (not monitored): 0 mA to 400 mA
- Connection type: Female connector M12, 5-pin
- Permitted cable length: ≤ 10 m
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Dimensions (H x L x W): 225.2mm x 40mm x 76.5mm
- Weight: 0.6 kg
Key Features
- Type 4 safety device compliant with IEC 61496-1
- Safety Integrity Level SIL 3 (IEC 61508)
- Category 4 and Performance Level PL e (EN ISO 13849)
- Concurrence monitoring and sensor gap monitoring
- Monitoring of total muting time and belt stop function
- Muting with override and exit monitoring
- End of muting by ESPE
- LED diagnostic display for status indication
- Flexible mounting on M4000 Advanced or directly in system
- Protection class III (IEC 61140)
- IP65 rated enclosure for harsh environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial safety systems requiring muting switching amplifiers
- Integration with M4000 Advanced multiple light beam safety devices
- Safety monitoring in automated production lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Enhances safety in automated systems reducing risk of accidents and associated environmental hazards
- Durable IP65 rated housing reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK UE403-A0930 Muting Switching Amplifier is available now for immediate purchase. Ideal for industrial safety applications requiring high integrity muting control.
