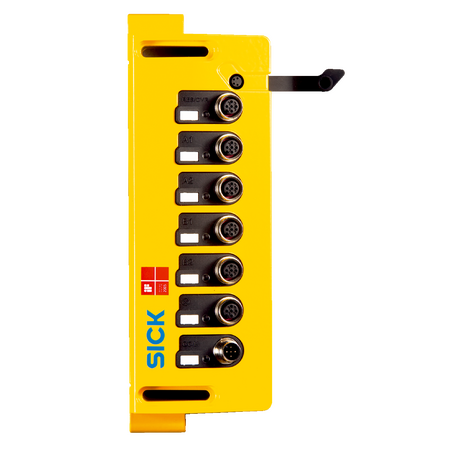

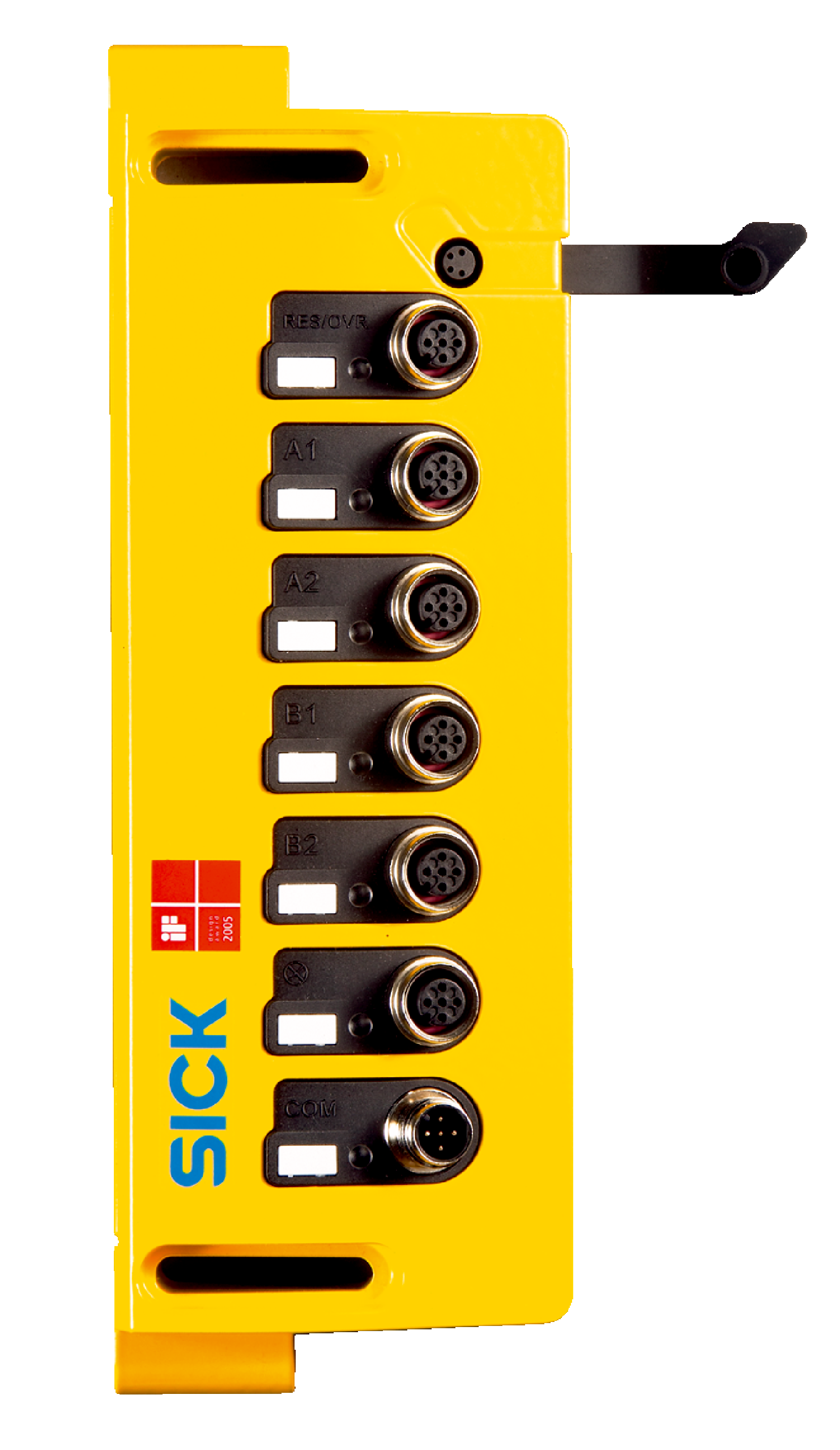

Muting Switching Amplifier UE403-A0930 | Type 4 Safety Device | IP65 Rated | by SICK
The Muting Switching Amplifier UE403-A0930 is a Type 4 safety device designed for industrial safety systems. With an IP65 rated enclosure and compliance with IEC standards, it ensures reliable performance in harsh environments. Ideal for automated manufacturing and conveyor belt systems, this amplifier features advanced monitoring capabilities and flexible mounting options, enhancing safety and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Muting Switching Amplifier, Safety Muting Amplifier, UE403-A0930 Amplifier, UNIVERS.EQUIPMENT M40 Safety Controller
Technical Specifications
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 2 A
- Input current HIGH: 6 mA to 15 mA
- Input current LOW: -0.5 mA to 1.5 mA
- Output current: ≤ 500 mA
- Muting lamp output current monitored: 20 mA to 400 mA
- Muting lamp output current not monitored: 0 mA to 400 mA
- Connection type: Female connector M12, 5-pin
- Permitted cable length: ≤ 10 m
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Dimensions (H x L x W): 225.2mm x 40mm x 76.5mm
- Weight: 0.6 kg
Key Features
- Type 4 safety device compliant with IEC 61496-1
- Safety Integrity Level SIL 3 (IEC 61508)
- Category 4 and Performance Level PL e (EN ISO 13849)
- Concurrence monitoring and total muting time monitoring
- Sensor gap monitoring and belt stop functionality
- Muting with override and exit monitoring
- End of muting by ESPE
- LED diagnostic display
- Flexible mounting on M4000 Advanced or directly in system
- Protection class III (IEC 61140)
- IP65 rated enclosure for harsh environments
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety systems and electrical standards to ensure compliance and optimal performance.
Applications
- Industrial safety systems requiring muting switching amplifiers
- Integration with M4000 Advanced multiple light beam safety devices
- Safety monitoring in automated manufacturing and conveyor belt systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances safety in automated systems reducing risk of accidents and associated environmental hazards
- Durable IP65 rated housing reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK UE403-A0930 UNIVERS.EQUIPMENT M40 muting switching amplifier is available for immediate purchase, ideal for industrial safety and automation applications.
