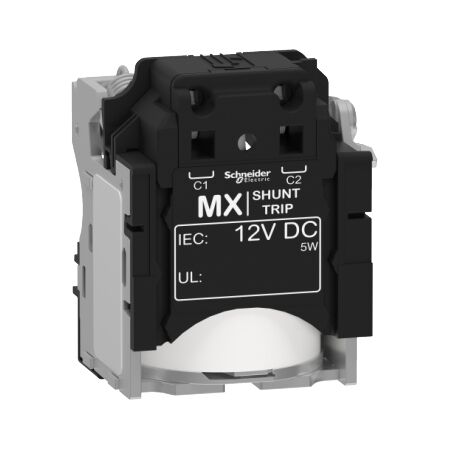

MX 12V DC Shunt Release | Remote Tripping Function | Compact Design | by Clipsal
The MX 12V DC Shunt Release is designed for remote tripping of compatible circuit breakers, making it ideal for industrial, commercial, and residential applications. With its instantaneous response time and low power consumption, this compact module integrates seamlessly into existing systems, enhancing electrical safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MX 12V DC Shunt Release | Remote Tripping Function | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHLV429382
Alternatively Known As: 12V DC Shunt Trip, Circuit Breaker Shunt Release, Remote Trip Module, Schneider MX Shunt Release, Acti9 Shunt Trip
Technical Specifications
- Operating Voltage: 12V DC
- Function: Shunt release for remote tripping
- Compatibility: Schneider/Clipsal Acti9 and Multi9 circuit breakers
- Mounting: DIN rail
- Response Time: Instantaneous upon signal
- Power Consumption: Low
- Dimensions (H x L x W): 85mm x 75mm x 18mm
- Weight: 0.15 kg
Key Features
- Allows remote tripping of compatible circuit breakers
- Operates on 12V DC supply voltage
- Compact and easy to integrate into existing systems
- Reliable and fast response for emergency disconnection
- Compatible with Schneider/Clipsal Acti9 and Multi9 circuit breakers
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Remote tripping of circuit breakers in electrical distribution boards
- Industrial control panels
- Commercial and residential switchboards
- Automation systems requiring emergency shutdown
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety by enabling rapid remote disconnection, reducing risk of electrical fires and equipment damage.
- Supports efficient energy management and system protection.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MX 12V DC Shunt Release SCHLV429382 is available for immediate purchase. Ideal for remote tripping applications in industrial, commercial, and residential electrical systems.
