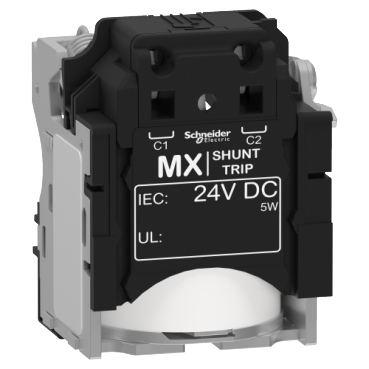

MX Shunt Trip 24VDC | Remote Tripping | Fast Response | Compact Design | @Pack of 1 | by Clipsal
The MX Shunt Trip 24VDC is designed for remote tripping of compatible Schneider and Clipsal circuit breakers, ensuring safety in electrical distribution panels. With a reliable 24V DC control voltage and a compact design, it integrates seamlessly into industrial automation and control systems, making it ideal for both commercial and residential applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MX Shunt Trip 24VDC | Remote Tripping | Fast Response | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429390
Alternatively Known As: 24VDC Shunt Trip, Circuit Breaker Shunt Release, MX Shunt Trip, Remote Trip Coil, Schneider Shunt Trip 24VDC
Technical Specifications
- Control Voltage: 24V DC
- Function: Shunt trip voltage release (MX)
- Compatibility: Schneider/Clipsal circuit breakers (Acti9, Multi9, etc.)
- Mounting: DIN rail or direct to circuit breaker
- Operating Temperature: -25°C to +70°C
- Electrical Endurance: 10,000 operations
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.15 kg
Key Features
- Enables remote tripping of compatible circuit breakers
- Operates at 24V DC control voltage
- Reliable and fast response for safety applications
- Easy integration with Schneider/Clipsal circuit breakers
- Compact design for straightforward installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Remote tripping of circuit breakers in electrical distribution panels
- Industrial automation and control systems
- Commercial and residential switchboards
- Emergency power-off systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Facilitates rapid power disconnection to prevent electrical hazards
- Supports integration with energy management and safety systems
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MX Shunt Trip 24VDC (SCHLV429390) is available for immediate purchase. Ideal for remote tripping applications in commercial, industrial, and residential electrical panels.
