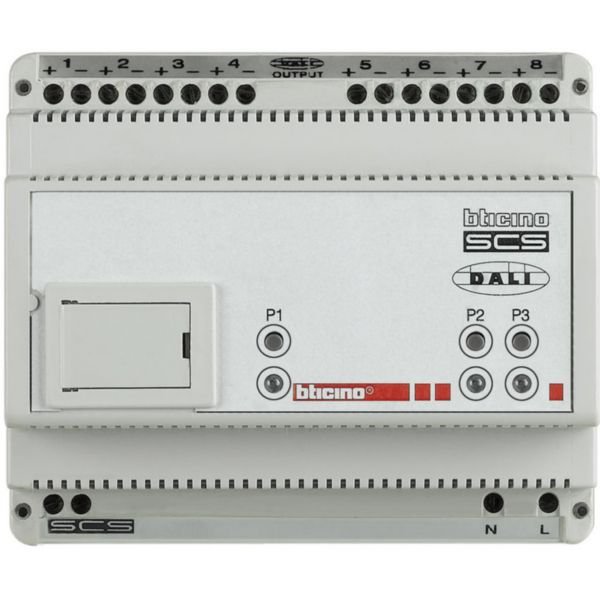

MyHOME 6 DIN DALI Controller | 8 Output Channels | DIN-Rail Mounting | IP20 Rated | @EA of 1 | by Bticino
The MyHOME 6 DIN DALI Controller is designed for efficient dimming control with 8 output channels, supporting up to 16 DALI devices per channel. Ideal for wired home automation systems, this controller features DIN-rail mounting for easy installation and LED indication for status monitoring. With an operating voltage of 110-240 V and halogen-free construction, it ensures reliable performance in residential and commercial lighting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MyHOME 6 DIN DALI Controller | 8 Output Channels | DIN-Rail Mounting | IP20 Rated | @EA of 1 | by Bticino
Brand: Bticino
SKU: F429
Alternatively Known As: DALI Lighting Controller, DIN Rail DALI Dimmer, MyHOME DALI Interface, Bticino DALI Controller
Technical Specifications
- Bus system: Other
- Mounting method: DIN-rail adaptor
- Width: 6 modular spacings
- Demounting protection: No
- LED indication: Yes
- Updateable: No
- Operating voltage: 110-240 V
- Protocol: Other
- Provider dependent: No
- Visualization: No
- Web-Server: No
- Radio interface: No
- IR interface: No
- Degree of protection: IP20
- Operating temperature: 5-45 °C
- Halogen free: Yes
- Connection type: Screwed terminal
- Label space: No
- Fitted with USB plug: No
- Contains Batteries: No
- Dimensions (H x L x W): 90mm x 65mm x 108mm
- Weight: 0.5 kg
Key Features
- 8 output channels supporting up to 16 DALI devices per channel
- DIN-rail mounting for easy installation
- Operating voltage: 110-240 V
- LED indication for status monitoring
- Halogen free construction
- Screwed terminal connection type
- Operating temperature range: 5-45 °C
- IP20 degree of protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper integration into home automation systems.
Applications
- Wired home automation systems
- Lighting control in residential and commercial buildings
- Integration with DALI lighting devices for dimming control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports energy-efficient lighting control through dimming
- Halogen free materials reduce environmental impact
- Enables optimized lighting usage reducing power consumption
Warranty Information
Standard manufacturer warranty applies, typically 2 years.
Available Now
The Bticino MyHOME 6 DIN DALI Controller for Dimming 8 Output is available now for immediate purchase. Ideal for wired home automation lighting control applications.
