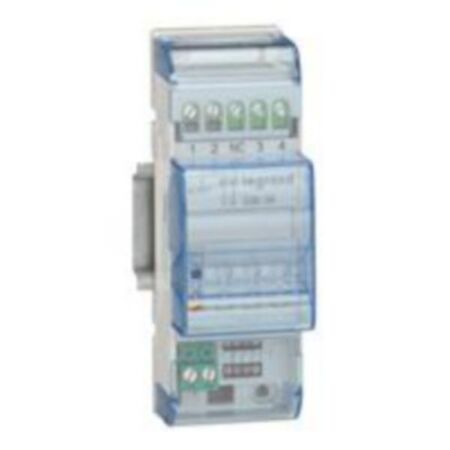

MyHOME Dimmer 1-10V | Controls Up to 10 Ballasts | DIN Rail Mount | @EA of 1 | by Bticino
The MyHOME Dimmer 1-10V is designed for smart home lighting control, capable of managing up to 10 ballasts with a power output of 0-460 W. Ideal for both residential and commercial applications, this dimmer features local pushbutton control and LED status indication, ensuring seamless integration with MyHOME automation systems for enhanced energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MyHOME Dimmer 1-10V | Controls Up to 10 Ballasts | DIN Rail Mount | @EA of 1 | by Bticino
Brand: Bticino
SKU: F413N
Alternatively Known As: MyHOME 1-10V Dimmer, Bticino DIN Rail Dimmer, F413N Dimmer Module
Technical Specifications
- Output: 1-10V controlling up to 10 ballasts
- Power supply: 27 Vdc via SCS BUS
- Current draw: 30 mA
- Output power: 0-460 W
- Max control current: 6 mA
- Frequency: 50-60 Hz
- Degree of protection: IP20
- Load type: Capacitive
- Mounting: DIN rail, 2 modules wide
- Bus connection: Yes, non-detachable
- Local operation: Yes, with pushbutton and LED indication
- Compatible with MyHOME_Suite software for configuration
- Dimensions (H x L x W): 90mm x 60mm x 36mm
- Weight: 0.2 kg
Key Features
- 1 output 1-10V controlling up to 10 ballasts
- Power supply via SCS BUS: 27 Vdc
- DIN rail mounting, 2 modular spacings wide
- Current draw: 30 mA
- Local pushbutton control for direct load command
- LED indication for status
- Output power up to 460 W
- Suitable for capacitive loads
- Power boost feature available
- Compatible with MyHOME_Suite software for configuration
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper integration with the MyHOME automation system.
Applications
- Smart home lighting control
- Residential and commercial lighting automation
- Integration with MyHOME home automation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings through precise dimming control
- Reduces electricity consumption by optimizing lighting levels
Warranty Information
Standard manufacturer warranty applies, typically 2 years.
Available Now
The Bticino MyHOME Dimmer 1-10V DIN 2 Modules F413N is available for immediate purchase, ideal for smart home and building lighting control applications.
