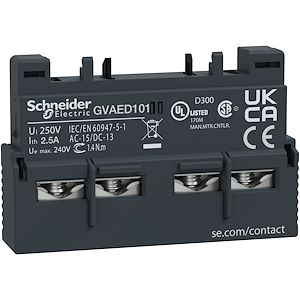

N/O FAULT Contact + N/O INST | Auxiliary Contact Block | Front Mounting Design | Compatible with TeSys GV2 & GV3 | by Clipsal
N/O FAULT Contact + N/O INST is an auxiliary contact block designed for TeSys GV series motor circuit breakers. Featuring a front mounting design for easy installation, it provides reliable signal feedback with 1 N/O fault contact and 1 N/O instantaneous contact. Ideal for industrial control panels and motor protection circuits, this block ensures efficient monitoring and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: N/O FAULT Contact + N/O INST | Auxiliary Contact Block | Front Mounting Design | Compatible with TeSys GV2 & GV3 | by Clipsal
Brand: Clipsal
SKU: SCHGVAED101
Alternatively Known As: TeSys GV Auxiliary Contact Block, SCHGVAED101, Clipsal N/O Fault Contact, Clipsal N/O Instantaneous Contact, GV2 GV3 Auxiliary Block
Technical Specifications
- Type: Auxiliary contact block
- Mounting: Front
- Contacts: 1 N/O fault contact + 1 N/O instantaneous contact
- Compatibility: TeSys GV2, GV3 motor circuit breakers
- Rated operational voltage: 690V AC
- Rated current: 6A (AC-15), 2A (DC-13)
- Connection: Screw clamp terminals
- Operating temperature: -20°C to +60°C
- Dimensions (H x L x W): 45mm x 40mm x 18mm
- Weight: 0.1 kg
Key Features
- Auxiliary contact block for TeSys GV series
- Front mounting design for easy installation
- Provides 1 N/O fault contact and 1 N/O instantaneous contact
- Reliable signal feedback for circuit status
- Compatible with TeSys GV2 and GV3 motor circuit breakers
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician to ensure compliance with safety standards.
Applications
- Industrial control panels
- Motor protection circuits
- Automation systems
- Electrical distribution boards
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Supports efficient monitoring and control, reducing unnecessary energy consumption in industrial systems.
- Durable design minimizes replacement frequency and electronic waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal TeSys GV N/O Fault Contact + N/O Instantaneous Auxiliary Block (SCHGVAED101) is available for immediate purchase. Ideal for industrial automation and motor protection applications.
