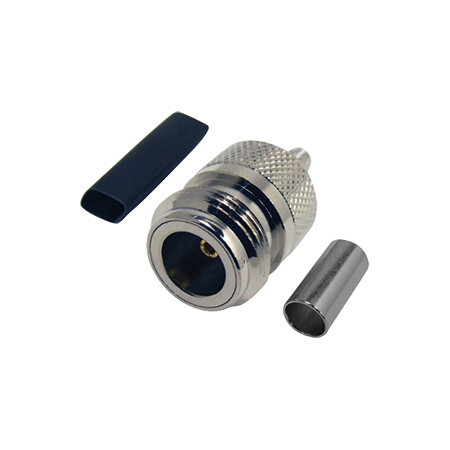

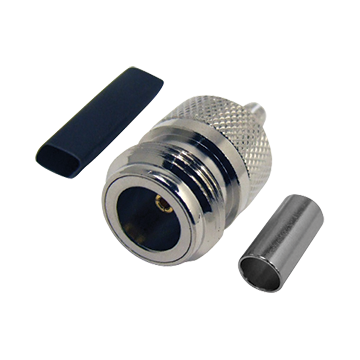

N Socket for LL/LMR195/RG58 | 50 Ohm Crimp | Up to 11 GHz | Panel Mount by Matchmaster
N socket with 50 Ohm impedance and crimp connection—ideal for RF applications and networking. Built for secure connections, compatible with LL, LMR195, and RG58 cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 'N' Socket for LL/LMR195/RG58 50 Ohm Crimp
Brand: Matchmaster
SKU: 56MM-N058S
Alternatively Known As: N-type RF connector, N socket crimp connector, 50 Ohm N connector, RG58 N connector
Technical Specifications
- Impedance: 50Ω nominal
- Connector type: N-type socket
- Compatible cables: 56MM-E58, E58LL, E195 series
- Thread standard: 5/8”-24UNEF-2B
- Body material: Brass with nickel plating
- Contact pin: Bronze with gold plating
- Dimensions (H x L x W): 20mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- N-type socket connector compatible with 56MM-E58, E58LL, and E195 series cables
- 50Ω nominal impedance
- Shield screw thread connection conforms to 5/8”-24UNEF-2B standard imperial thread
- Brass body with nickel plating
- Bronze contact pin with gold plating for high resistance to tarnishing
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper crimping and connection integrity.
Applications
- Cellular and 2-Way Radio systems
- Use with 56MM-E58, E58LL, and E195 series cables
- Radio communication and antenna connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable nickel and gold plating reduces corrosion and extends product life, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster N Socket for LL/LMR195/RG58 50 Ohm Crimp Connector is available now for immediate purchase. Ideal for cellular and 2-way radio communication applications.
