N Socket Spinner Connector | 50 Ohm | Half-inch Cable | Up to 11 GHz by Matchmaster
N socket spinner connector with 50 Ohm impedance and half-inch cable compatibility—ideal for telecommunications and broadcasting. Built for easy manipulation, with a durable brass and nickel-plated design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

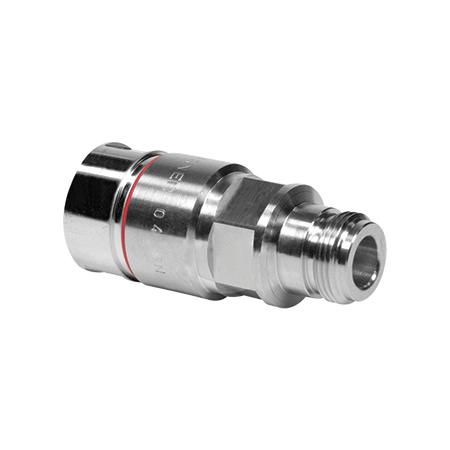

Product Name/Title: 'N' Socket Spinner Connector for E500 50 Ohm Half-inch Cable
Brand: Matchmaster
SKU: 56MM-N500S
Alternatively Known As: N Socket RF Connector, Half-inch Cable N Connector, Spinner N Socket Connector, 50 Ohm N Connector
Technical Specifications
- Connector type: N socket
- Version: MultiFit
- Impedance: 50 Ω
- Frequency range: 0 - 6 GHz
- VSWR: ≤ 1.1 at 6 GHz
- Material and surface: Copper Alloy inner and outer conductors with CuSnZn and Sn plating
- Insulation: PTFE, PE
- Sealing: Silicone Rubber, EPDM
- Degree of Protection: IP68 (mated)
- Cable compatibility: Compatible with multiple 1/2"-50 Ohm cables from Spinner, Acome, Andrew, Draka, Eupen, Hansen, Hengxin, Leoni, LS Cable, RFS
- Standards: IEC 61169-16
- Dimensions (H x L x W): 30mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- Used to connect half-inch cable to antenna ports or other communications links
- Frequency range DC to 6GHz
- Made from copper alloy metal parts with a combination of different plating's
- PTFE/PE insulation with silicone rubber, EPDM sealing
- IP68 per EN 60529 (mated)
- Reliable, robust and durable
Professional Installation Requirements
- Installation by a qualified RF technician or electrician is recommended to ensure proper connection and sealing.
Applications
- Cellular antenna connections
- 2-Way radio communications
- Linking longer cable runs in RF networks
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- IP68 sealing protects against environmental damage, extending product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty terms.
Available Now
The Matchmaster N Socket Spinner Connector for E500 50 Ohm Half-inch Cable is available now for immediate purchase. Ideal for cellular and 2-way radio communication applications.
