N Type Plug to SMA Socket Adaptor | 50 Ohm | DC to 18 GHz | Low-Loss by Matchmaster
N Type plug to SMA socket adaptor with 50 Ohm impedance and DC to 18 GHz frequency range—ideal for RF and microwave applications. Built for reliable connectivity, with high-quality construction and low-loss performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

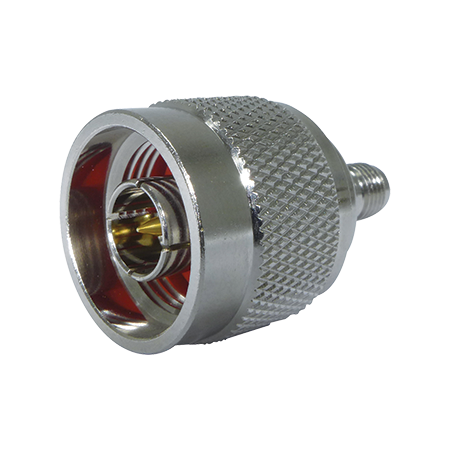

Product Name/Title: 'N' Type Plug to SMA Socket Adaptor
Brand: Matchmaster
SKU: 56MM-NM-SMAF
Alternatively Known As: N to SMA adaptor, N male to SMA female connector, RF adaptor, coaxial cable adaptor
Technical Specifications
- Frequency Range: 4 GHz (Maximum)
- Impedance: 50 Ω
- Dielectric Withstanding Voltage: 1500V (RMS)
- Temperature Range: -40ºC to +85ºC
- Insulation Resistance: ≥ 5000MΩ
- Mating Thread: 5/8-24 UNEF-2A
- Durability: ≥ 500 cycles
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.05 kg
Key Features
- Used to join two cables together when adapting between SMA and N-type fittings
- Centre pin gold plated
- Standard 5/8-24 UNEF-2A thread
- Frequency range up to 4GHz
- Brass body with nickel plating
- Durability of 500 cycles or more
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper connection and performance.
Applications
- Cellular and 2-Way Radio equipment adaptation
- Connecting SMA and N-type fittings in communication systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass and nickel plating extend product life, reducing waste
- High-quality materials ensure reliable connections, minimizing signal loss and energy waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster N Type Plug to SMA Socket Adaptor is available now for immediate purchase. Ideal for cellular and 2-way radio equipment adaptation.
