'N' Type to SMA Socket Adaptor | DC to 6 GHz | 50 Ohm | Robust Design by Matchmaster
'N' Type to SMA socket adaptor with DC to 6 GHz frequency range and 50 Ohm impedance—ideal for radio frequency applications. Built for reliable connectivity, compatible with various N and SMA type devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

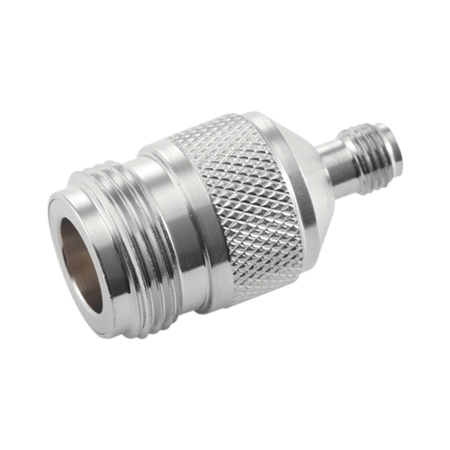

Product Name/Title: 'N' Type Socket to SMA Socket Adaptor
Brand: Matchmaster
SKU: 56MM-NS-SMAF
Alternatively Known As: 'N' Female to SMA Female Adapter, RF Cable Adapter, SMA to N Type Connector Adapter
Technical Specifications
- Connector Type: 'N' Female to SMA Female
- Frequency Range: Up to 6 GHz
- Material: Nickel-plated brass body with gold-plated centre pin
- Durability: ≥ 500 mating cycles
- Design: Straight-bodied adapter
- Dimensions (H x L x W): 10mm x 40mm x 25mm
- Weight: 0.05 kg
Key Features
- Used to join two cables together or adapt hardware interfaces
- Centre pin gold plated for improved conductivity
- Solid one-piece outer body for ingress protection and durability
- Supports frequency range up to 6 GHz
- Brass body with nickel plating for corrosion resistance
- Durability of ≥ 500 mating cycles
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper connection and performance.
Applications
- Cellular and 2-Way Radio installations
- Connecting Male 'N' type interface to Male SMA interface
- Adapting between 'N' type and SMA fittings in RF systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable nickel-plated brass construction reduces need for frequent replacements
- Supports efficient signal transmission reducing energy loss
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Matchmaster 'N' Type Socket to SMA Socket Adaptor is available now for immediate purchase. Ideal for cellular and 2-way radio applications requiring reliable RF connections.
