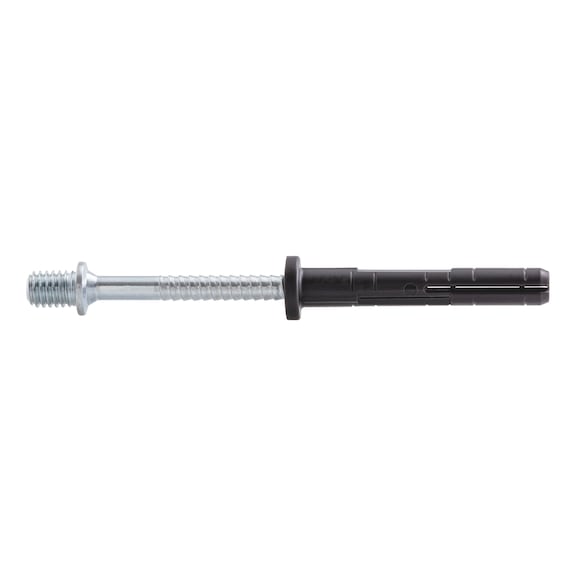

Nail Anchor SHARK® Hammer TYPE GEW | 6mm Diameter | Zinc Plated Steel | Fast Assembly | @Pack of 200 | by Wurth
Nail Anchor SHARK® Hammer TYPE GEW is designed for fast and reliable fastening in light load applications, featuring a 6mm diameter and zinc plated steel construction. Ideal for concrete and masonry, this anchor ensures quick installation with its pre-assembled design and integrated hammer-in stop, making it perfect for both professional and DIY projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nail Anchor SHARK® Hammer TYPE GEW | 6mm Diameter | Zinc Plated Steel | Fast Assembly | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 5906336406
Alternatively Known As: Hammer Nail Anchor, SHARK Hammer Anchor, GEW Nail Anchor, Wurth Hammer Fixing
Technical Specifications
- Anchor diameter: 6 mm
- Anchor length: 40 mm
- Max. attachment height: 10 mm
- Embedding depth: 30 mm
- Nominal drill-bit diameter: 6 mm
- Drill hole depth: 35 mm
- Hole diameter in component: 6.5 mm
- Material of nail: Steel
- Surface: Zinc plated
- Tightening torque: 4 Nm
- Internal drive: Z2
- Dimensions (H x L x W): 40mm x 40mm x 6mm
- Weight: 0.1 kg
Key Features
- Fast assembly with proven performance
- Wall plug body with flat collar
- Nail made of zinc plated steel with connecting thread
- Anchor and nail screw pre-assembled for quick installation
- Suitable for in-place installation
- Can be removed via drive in screw head
- Integrated hammer-in stop prevents premature expansion
- Resistant to UV rays
- Rot-resistant plastic anchor made of high-quality polyamide
- Temperature resistant from -40°C to +100°C
- Halogen-free
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct embedment and secure fastening according to manufacturer guidelines.
Applications
- Fastening light loads in concrete and masonry
- Non-structural applications in construction
- Suitable for countersunk and protruding finishes
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable and rot-resistant design extends product life
- UV resistance ensures long-term performance reducing replacement waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
The Wurth Nail Anchor SHARK® Hammer TYPE GEW 200 PCS is available now for immediate purchase. Ideal for fast, reliable fastening in light load applications in concrete and masonry.
