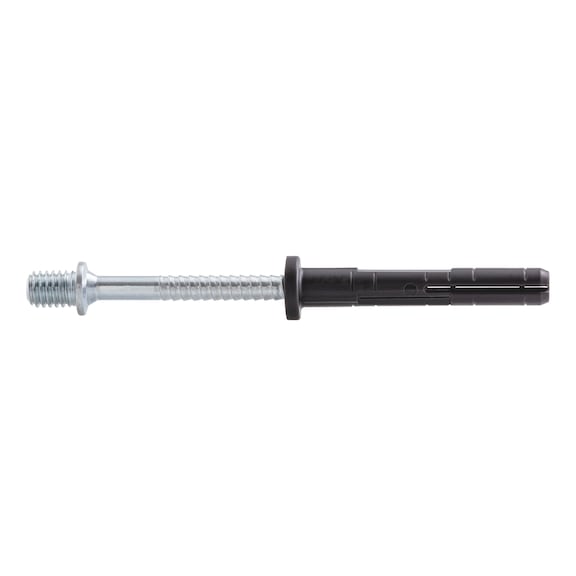

Nail Anchor SHARK® Hammer GEW | Zinc Plated Steel | Fast Assembly & UV Resistant | @Pack of 100 | by Wurth
Nail Anchor SHARK® Hammer GEW is designed for fast assembly with proven performance, making it ideal for fastening light loads in concrete and masonry. Made from zinc plated steel, this anchor is UV resistant and features a pre-assembled design for convenience, ensuring quick and cost-effective installation for non-structural applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nail Anchor SHARK® Hammer GEW | Zinc Plated Steel | Fast Assembly & UV Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 5906338458
Alternatively Known As: Hammer-in Nail Anchor, SHARK Hammer Anchor, GEW Nail Anchor, Zinc Plated Steel Nail Anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 45 mm
- Max. attachment height: 5 mm
- Embedding depth: 40 mm
- Nominal drill-bit diameter: 8 mm
- Drill hole depth: 45 mm
- Hole diameter in component: 8.5 mm
- Material of nail: Steel
- Surface: Zinc plated
- Tightening torque: 4 Nm
- Internal drive: Z3
- Dimensions (H x L x W): 45mm x 45mm x 8mm
- Weight: 0.1 kg
Key Features
- Fast assembly with proven performance
- Wall plug body with flat collar
- Nail made of zinc plated steel with connecting thread
- Anchor and nail screw pre-assembled for convenience
- Suitable for in-place installation
- Can be removed via drive in screw head
- Integrated hammer-in stop prevents premature expansion
- Resistant to UV rays
- Rot-resistant plastic anchor made of high-quality polyamide
- Temperature resistant from -40°C to +100°C
- Halogen-free
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper fastening and compliance with safety standards.
Applications
- Fastening light loads in concrete and masonry
- Non-structural applications requiring quick and cost-effective installation
- Suitable for countersunk and protruding finishes
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable and rot-resistant design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for detailed warranty terms.
Available Now
The Wurth Nail Anchor SHARK® Hammer TYPE GEW 100 PCS is available for immediate purchase, ideal for fast and reliable fastening in light load applications.
