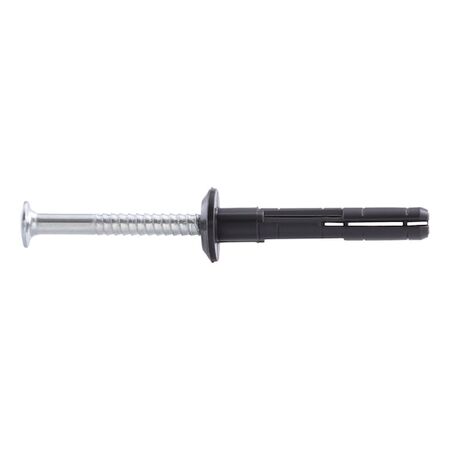

Nail Anchor SHARK® Hammer Type | 6mm Diameter | Zinc-Plated Steel | Fast Assembly | @Pack of 100 | by Wurth
Nail Anchor SHARK® Hammer Type is designed for fast and reliable fastening of light loads in concrete and masonry. With a 6mm diameter and made from durable zinc-plated steel, this anchor ensures quick installation and proven performance. Ideal for non-structural applications, it features a large contact surface for slots and is resistant to UV rays, making it perfect for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nail Anchor SHARK® Hammer Type | 6mm Diameter | Zinc-Plated Steel | Fast Assembly | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 590632660
Alternatively Known As: Hammer Drive Nail Anchor, SHARK Hammer Nail Anchor, Push-Through Nail Anchor, Concrete Nail Anchor
Technical Specifications
- Anchor diameter: 6 mm
- Anchor length: 60 mm
- Max. attachment height: 30 mm
- Embedding depth: 30 mm
- Nominal drill-bit diameter: 6 mm
- Drill hole depth: 35 mm
- Hole diameter in component: 6.5 mm
- Material of nail: Steel
- Surface: Zinc plated
- Internal drive: Z2
- Dimensions (H x L x W): 60mm x 60mm x 6mm
- Weight: 0.1 kg
Key Features
- Fast assembly with proven performance
- Wall plug body with mushroom collar
- Nail made of zinc-plated steel
- Quick, cost-effective installation
- Anchor and nail screw are pre-assembled
- Suitable for in-place installation
- Can be removed via drive-in screw head
- Large contact surface ideal for slots
- Integrated hammer-in stop prevents premature expansion
- Resistant to UV rays
- Rot-resistant plastic anchor made of high-quality polyamide
- Temperature resistant from -40°C to +100°C
- Halogen-free
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure correct drill hole depth and secure fastening according to manufacturer guidelines.
Applications
- Fastening light loads in concrete and masonry
- Suitable for non-structural applications
- Ideal for countersunk and protruding finishes
- Use in slots due to large contact surface
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable and rot-resistant design extends product life
- Temperature resistance ensures long-term reliability
Warranty Information
Warranty details available upon request from Wurth; typically covers manufacturing defects.
Available Now
The Wurth Nail Anchor SHARK® Hammer TYPE PK 100 PCS is available for immediate purchase, ideal for fast and reliable fastening of light loads in concrete and masonry.
