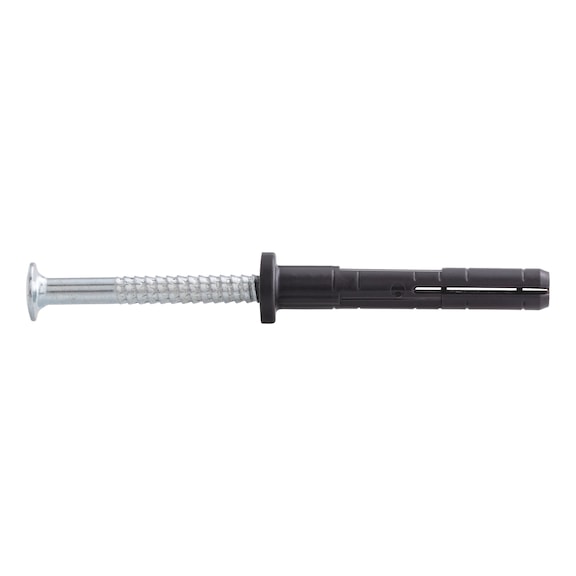

Nail Anchor SHARK® Hammer TYPE FK | Zinc Plated Steel | Fast Assembly | @Pack of 200 | by Wurth
Nail Anchor SHARK® Hammer TYPE FK is designed for fast assembly and reliable fastening of light loads in concrete and masonry. Made from zinc plated steel, these anchors feature a pre-assembled design for convenience and an integrated hammer-in stop to prevent premature expansion. Ideal for both professional and DIY applications, they ensure compliance with safety standards while being resistant to UV rays and rot.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nail Anchor SHARK® Hammer TYPE FK | Zinc Plated Steel | Fast Assembly | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 590630540
Alternatively Known As: Hammer Drive Nail Anchor, SHARK Hammer Anchor, Push-Through Nail Anchor, Zinc Plated Nail Anchor
Technical Specifications
- Anchor diameter: 5 mm
- Anchor length: 40 mm
- Max. attachment height: 15 mm
- Embedding depth: 25 mm
- Nominal drill-bit diameter: 5 mm
- Drill hole depth: 30 mm
- Hole diameter in component: 5.5 mm
- Material of nail: Steel
- Surface: Zinc plated
- Internal drive: Z2
- Dimensions (H x L x W): 40mm x 40mm x 5mm
- Weight: 0.1 kg
Key Features
- Fast assembly with proven performance
- Wall plug body with flat collar nail made of zinc plated steel
- Anchor and nail screw are pre-assembled for convenience
- Can be removed via drive-in screw head
- Integrated hammer-in stop prevents premature expansion
- Resistant to UV rays and rot-resistant plastic anchor made of high-quality polyamide
- Temperature resistant from -40°C to +100°C
- Countersunk head design automatically countersinks in soft wood
- Halogen-free
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper fastening and compliance with safety standards.
Applications
- Fastening light loads in concrete and masonry
- Push-through installation for quick assembly
- Suitable for countersinking and leaving protruding in soft wood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable and rot-resistant design extends product life and reduces waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth Nail Anchor SHARK® Hammer TYPE FK 200 PCS is available now for immediate purchase. Ideal for fast and reliable fastening of light loads in construction and building applications.
