Nail Anchor SHARK® Hammer TYPE FK | Zinc Plated Steel | Push-Through Installation | @Pack of 200 | by Wurth
Nail Anchor SHARK® Hammer TYPE FK is designed for fast and reliable fastening in concrete and masonry. With a push-through installation method and a durable zinc plated steel construction, it’s perfect for both professional and DIY applications. Ideal for light loads, this anchor ensures quick assembly and compliance with safety standards, making it a must-have for any construction project.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nail Anchor SHARK® Hammer TYPE FK | Zinc Plated Steel | Push-Through Installation | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 590630650
Alternatively Known As: Hammer Nail Anchor, SHARK Hammer Anchor, Push-Through Nail Anchor, Zinc Plated Nail Anchor
Technical Specifications
- Anchor diameter: 6 mm
- Anchor length: 50 mm
- Max. attachment height: 20 mm
- Embedding depth: 30 mm
- Nominal drill-bit diameter: 6 mm
- Drill hole depth: 35 mm
- Hole diameter in component: 6.5 mm
- Material of nail: Steel
- Surface: Zinc plated
- Internal drive: Z2
- Dimensions (H x L x W): 50mm x 6mm x 6mm
- Weight: 0.1 kg
Key Features
- Fast assembly with proven performance

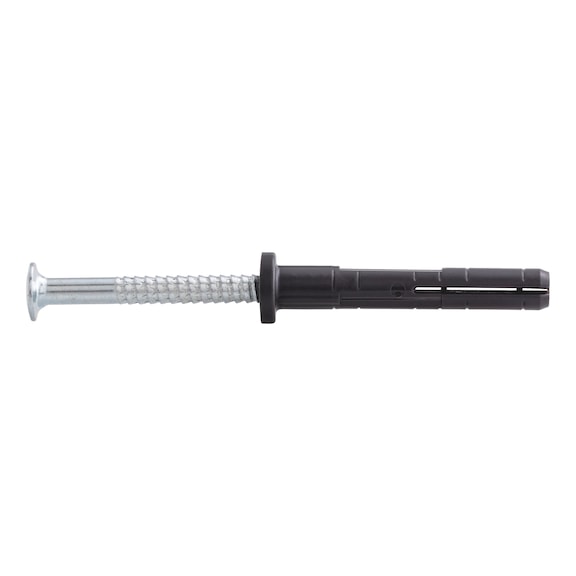

- Wall plug body with flat collar nail made of zinc plated steel
- Anchor and nail screw are pre-assembled for convenience
- Push-through installation method
- Removable via drive-in screw head
- Integrated hammer-in stop prevents premature expansion
- UV resistant and rot-resistant plastic anchor made of high-quality polyamide
- Temperature resistant from -40°C to +100°C
- Countersunk head design automatically countersinks in soft wood
- Halogen-free
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper fastening and compliance with safety standards.
Applications

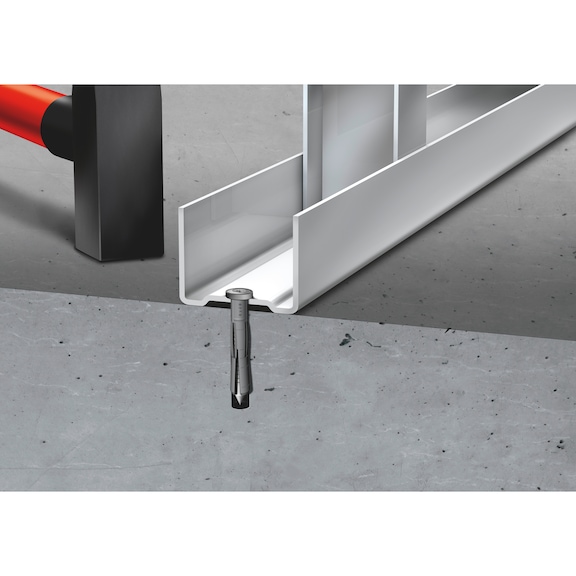

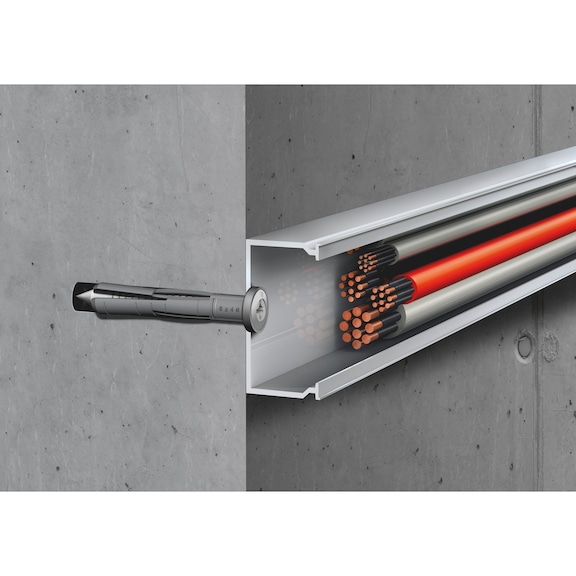

- Fastening light loads in concrete and masonry
- Push-through installation for quick assembly
- Suitable for countersinking and leaving protruding in soft wood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable and rot-resistant design extends product life reducing waste
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth Nail Anchor SHARK® Hammer TYPE FK 200 PCS is available now for immediate purchase. Ideal for fast and reliable fastening in construction and building applications.
