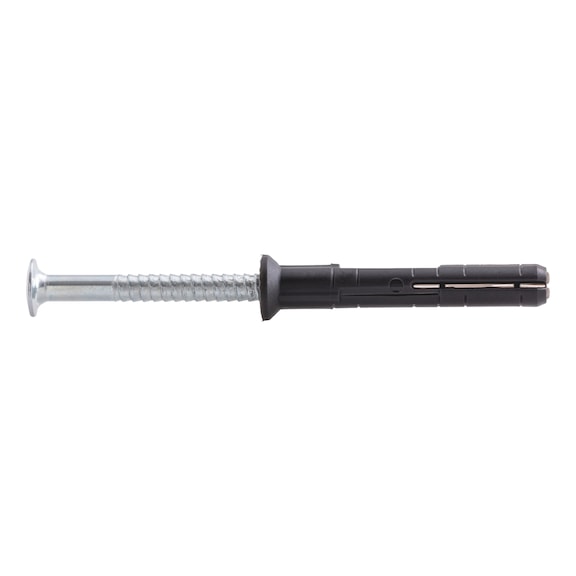

Nail Anchor SHARK® Hammer TYPE SK | Zinc Plated Steel | Fast Assembly & UV Resistant | @Pack of 100 | by Wurth
Nail Anchor SHARK® Hammer TYPE SK is designed for fast assembly and reliable fastening in light load applications. Made from zinc-plated steel, this anchor is UV resistant and features a countersunk head for easy installation in soft wood. Ideal for non-structural applications in concrete and masonry, it ensures secure fastening with proven performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nail Anchor SHARK® Hammer TYPE SK | Zinc Plated Steel | Fast Assembly & UV Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 5906318160
Alternatively Known As: Hammer Drive Nail Anchor, SHARK Hammer Anchor, Nail Plug Anchor, Zinc Plated Nail Anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 160 mm
- Max. attachment height: 120 mm
- Embedding depth: 40 mm
- Nominal drill-bit diameter: 8 mm
- Drill hole depth: 45 mm
- Hole diameter in component: 8.5 mm
- Material of nail: Steel
- Surface: Zinc plated
- Internal drive: Z3
- Dimensions (H x L x W): 160mm x 8.5mm x 8mm
- Weight: 0.1 kg
Key Features
- Fast assembly with proven performance
- Wall plug body with countersunk nail made of zinc-plated steel
- Pre-assembled anchor and nail screw for quick installation
- Suitable for in-place installation
- Removable via drive in screw head
- Integrated hammer-in stop prevents premature expansion
- UV resistant and rot-resistant high-quality polyamide plastic anchor
- Temperature resistant from -40°C to +100°C
- Halogen-free
- Countersunk head design automatically countersinks in soft wood
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper embedment and secure fastening according to technical guidelines.
Applications
- Fastening light loads in concrete and masonry
- Non-structural applications in construction
- Suitable for countersunk and protruding finishes
- Use in soft wood with countersunk head design
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable and rot-resistant design extends product life reducing waste
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth Nail Anchor SHARK® Hammer TYPE SK 100 PCS is available now for immediate purchase. Ideal for fast, reliable fastening in light load applications in concrete and masonry.
