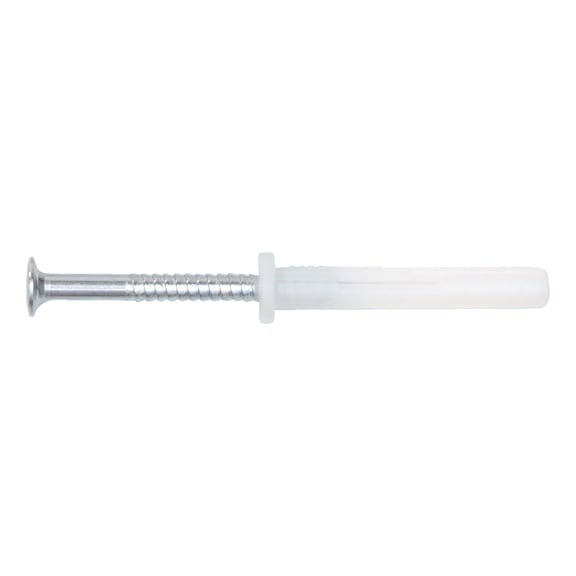

Nail Anchor W-ZND Type FK | Zinc-Plated Steel | Quick Assembly | UV Resistant | @Pack of 200 | by Wurth
Nail Anchor W-ZND Type FK is designed for quick and secure installations, featuring zinc-plated steel nails and a flat head for easy assembly. Ideal for securing angle brackets and mounting panels, this anchor is UV resistant and temperature resistant from -40°C to +150°C, making it perfect for various construction applications. With pre-assembled screws and a hammer-in stop, it ensures reliable performance in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nail Anchor W-ZND Type FK | Zinc-Plated Steel | Quick Assembly | UV Resistant | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 90630640
Alternatively Known As: Nail anchor, wall plug anchor, expansion nail anchor, W-ZND anchor, FK type nail anchor
Technical Specifications
- Anchor diameter: 6 mm
- Anchor length: 40 mm
- Max. attachment height: 10 mm
- Embedding depth: 30 mm
- Nominal drill-bit diameter: 6 mm
- Drill hole depth: 35 mm
- Hole diameter in component: 6 mm
- Material of nail: Steel
- Surface: Zinc plated
- Internal drive: Z2
- Dimensions (H x L x W): 40mm x 40mm x 6mm
- Weight: 0.1 kg
Key Features
- Wall plug body with flat head and zinc-plated steel nails
- Quick, low-cost assembly
- Can be removed using drive-in screw head
- Pre-assembled with matching screw
- Suitable for push-through installation
- Integral hammer-in stop prevents premature expansion
- Suitable for recessed or protruding installation
- UV resistant and rot resistant (high-quality polyamide plastic anchors)
- Temperature resistant from -40°C to +150°C
- Halogen-free
Professional Installation Requirements
- Professional installation recommended to ensure correct drilling and secure fixing according to manufacturer instructions.
Applications
- Securing angle brackets
- Fixing panels and metal sheets
- Mounting cable ducts
- Non-recessed installation of various components
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable and reusable design minimizes waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Nail Anchor W-ZND Type FK 200 PCS is available for immediate purchase, ideal for construction and building applications requiring secure fixing solutions.
