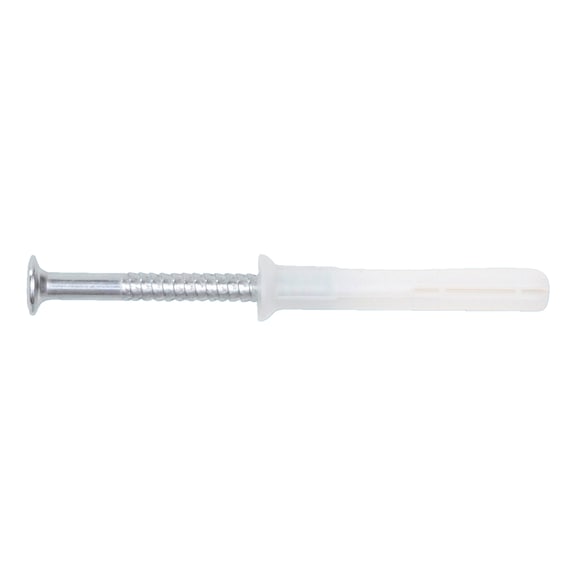

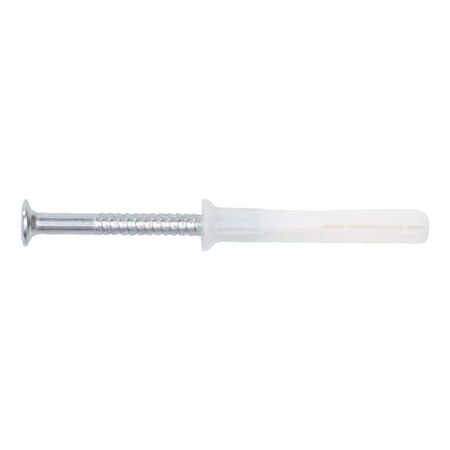

Nail Anchor W-ZND Type SK | 8mm Diameter | Stainless Steel A2 Nail | UV Resistant | @Pack of 100 | by Wurth
Nail Anchor W-ZND Type SK features an 8mm diameter and a durable stainless steel A2 nail, making it ideal for fastening squared timbers and thin sheets. Designed for both recessed and protruding installations, this UV-resistant anchor ensures reliable performance in various applications, while its halogen-free materials contribute to a lower environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 120 mm
- Max. attachment height: 80 mm
- Embedding depth: 40 mm
- Nominal drill-bit diameter: 8 mm
- Drill hole depth: 45 mm
- Hole diameter in component: 8 mm
- Material of nail: Stainless steel A2
- Surface: Plain
- Internal drive: Z3
- Dimensions (H x L x W): 120mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Wall plug body with countersunk head and stainless steel A2 nail
- Plastic anchor made of high-quality polyamide, resistant to rotting
- Temperature resistant from -40°C to +150°C
- Resistant to UV rays
- Halogen free
- Pre-assembled for quick, cost-effective installation
- Clear integral hammer-in stop prevents premature expansion
- Can be removed via drive in screw head
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper fastening and safety.
Applications
- Fastening squared timbers, laths, thin sheets
- Mounting all components for recessed installation
- Suitable for recessed or protruding installation
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable and resistant to rotting, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Nail Anchor W-ZND Type SK 100 PCS is available now for immediate purchase. Ideal for construction and building fastening applications.
