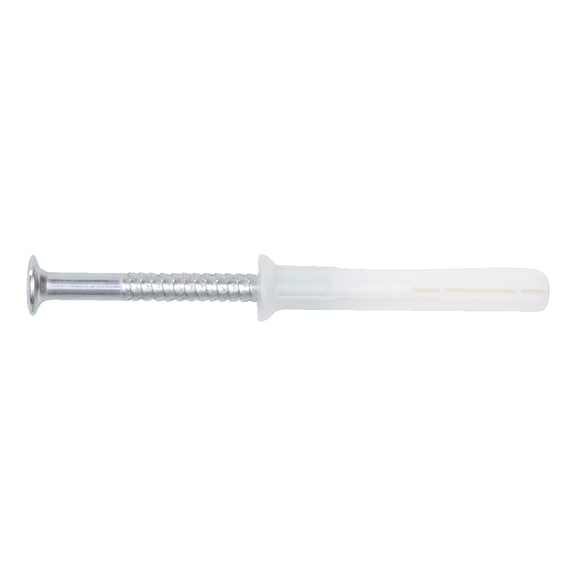

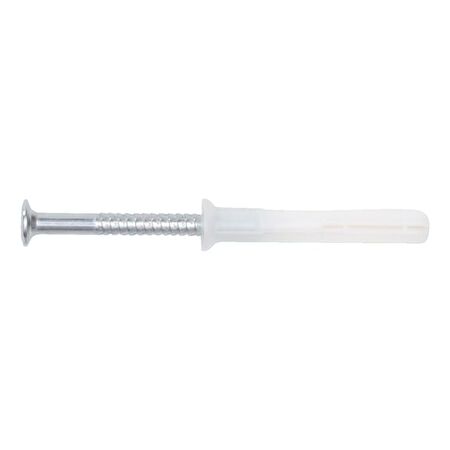

Nail Anchor W-ZND Type SK | Stainless Steel A2 | UV Resistant | @Pack of 100 | by Wurth
Nail Anchor W-ZND Type SK is crafted from durable stainless steel A2 and features UV resistance, making it perfect for outdoor applications. Ideal for fastening squared timbers and thin sheets, this anchor ensures secure installation with its pre-assembled design. With a quick and cost-effective setup, it's suitable for both recessed and protruding installations, providing reliable performance in various construction projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 100 mm
- Max. attachment height: 60 mm
- Embedding depth: 40 mm
- Nominal drill-bit diameter: 8 mm
- Drill hole depth: 45 mm
- Hole diameter in component: 8 mm
- Material of nail: Stainless steel A2
- Surface: Plain
- Internal drive: Z3
- Dimensions (H x L x W): 100mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features
- Wall plug body with countersunk head
- Nail made of stainless steel A2
- Plastic anchor made of high-quality polyamide resistant to rotting
- Resistant to UV rays
- Temperature resistant from -40°C to +150°C
- Halogen free
- Quick, cost-effective installation
- Pre-assembled, no need to search for the right screw
- Can be removed via drive in screw head
- Clear integral hammer-in stop prevents premature expansion
Professional Installation Requirements
- Professional installation recommended to ensure correct embedding depth and secure fastening.
Applications
- Fastening squared timbers, laths, thin sheets
- Mounting all components for recessed installation
- Suitable for recessed or protruding installation
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Nail Anchor W-ZND Type SK 100 PCS is available now for immediate purchase. Ideal for construction and building fastening applications.
