Nail Anchor W-ZND Type SK | Stainless Steel A2 | UV Resistant | @Pack of 100 | by Wurth
Nail Anchor W-ZND Type SK is crafted from durable stainless steel A2 and designed for reliable fastening in construction applications. With UV resistance and a pre-assembled design, it ensures quick installation and long-lasting performance. Ideal for securing squared timbers and thin sheets, this anchor is perfect for both recessed and protruding installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nail Anchor W-ZND Type SK | Stainless Steel A2 | UV Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 90635880
Alternatively Known As: Nail anchor, W-ZND anchor, SK type nail anchor, stainless steel nail anchor, polyamide wall plug
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 80 mm
- Max. attachment height: 40 mm
- Embedding depth: 40 mm
- Nominal drill-bit diameter: 8 mm
- Drill hole depth: 45 mm
- Hole diameter in component: 8 mm
- Material of nail: Stainless steel A2
- Surface: Plain
- Internal drive: Z3
- Dimensions (H x L x W): 80mm x 8mm x 8mm
- Weight: 0.1 kg
Key Features

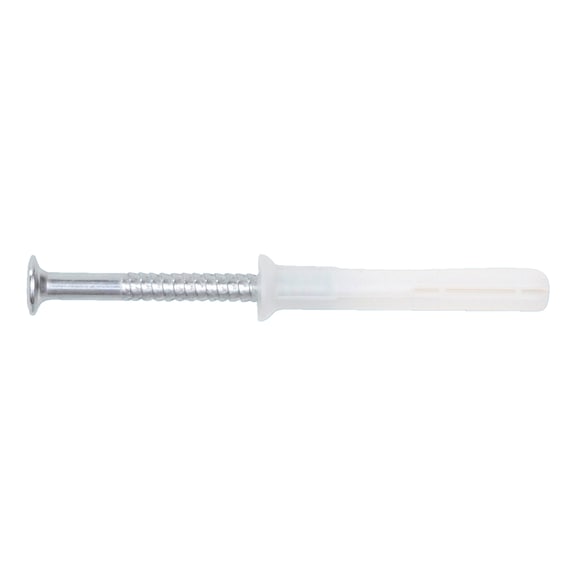

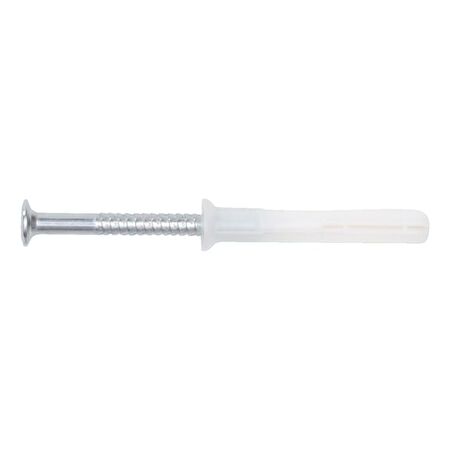

- Wall plug body with countersunk head and stainless steel A2 nail
- Plastic anchor made of high-quality polyamide resistant to rotting
- Resistant to UV rays and temperature resistant from -40°C to +150°C
- Halogen free
- Pre-assembled for quick, cost-effective installation
- Clear integral hammer-in stop prevents premature expansion
- Can be removed via drive in screw head
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper fastening and safety.
Applications
- Fastening squared timbers, laths, thin sheets
- Mounting all components for recessed installation
- Suitable for recessed or protruding installation
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable materials increase product lifespan and reduce waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Nail Anchor W-ZND Type SK 100 PCS is available now for immediate purchase. Ideal for construction and building fastening applications.
