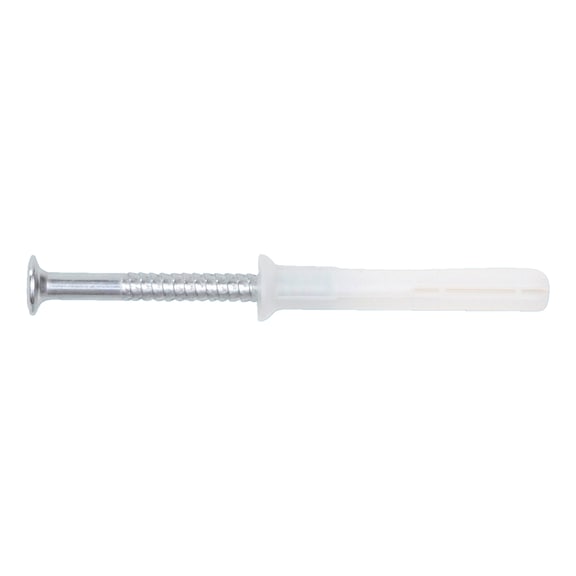

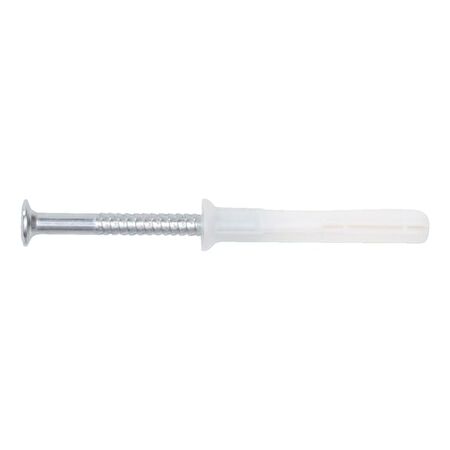

Nail Anchor W-ZND Type SK | Zinc-Plated Steel Nails | UV Resistant | @Pack of 100 | by Wurth
Nail Anchor W-ZND Type SK features zinc-plated steel nails and UV resistance, making it perfect for secure fastening in construction and woodworking applications. Designed for professional installation, this anchor ensures durability and reliability, with a clear integral hammer-in stop to prevent premature expansion. Ideal for fastening squared timbers and thin sheets, it’s a must-have for any toolkit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Nail Anchor W-ZND Type SK | Zinc-Plated Steel Nails | UV Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 906318140
Alternatively Known As: Nail Anchor W-ZND, Wurth Wall Plug Anchor, Zinc-Plated Nail Anchor, Polyamide Plastic Anchor
Technical Specifications
- Anchor diameter: 8 mm
- Anchor length: 140 mm
- Max. attachment height: 5 mm
- Embedding depth: 135 mm
- Nominal drill-bit diameter: 8 mm
- Drill hole depth: 140 mm
- Hole diameter in component: 8 mm
- Material of nail: Steel
- Tightening torque: 8 Nm
- Dimensions (H x L x W): 140mm x 8mm x 8mm
- Weight: 0.5 kg
Key Features
- Wall plug body with countersunk head and zinc-plated steel nails
- Quick, low-cost assembly with pre-assembled matching screw
- Can be removed using drive-in screw head
- Clear integral hammer-in stop prevents premature expansion
- Suitable for recessed or protruding installation (retracts into soft wood automatically)
- Resistant to UV rays and rot resistant (plastic anchors made of high-quality polyamide)
- Temperature resistant from -40°C to +150°C
- Halogen-free
Professional Installation Requirements
- Professional installation recommended to ensure correct drilling, insertion, and torque application for secure fastening.
Applications
- Fastening squared timbers, laths, thin sheets
- Suitable for recessed mounting of various components
- Ideal for push-through installation in wood and similar materials
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable and rot-resistant design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Nail Anchor W-ZND Type SK 100 PCS is available now for immediate purchase. Ideal for construction and woodworking applications requiring secure and durable fastening.
